Brother BAS-340 - Machine Head

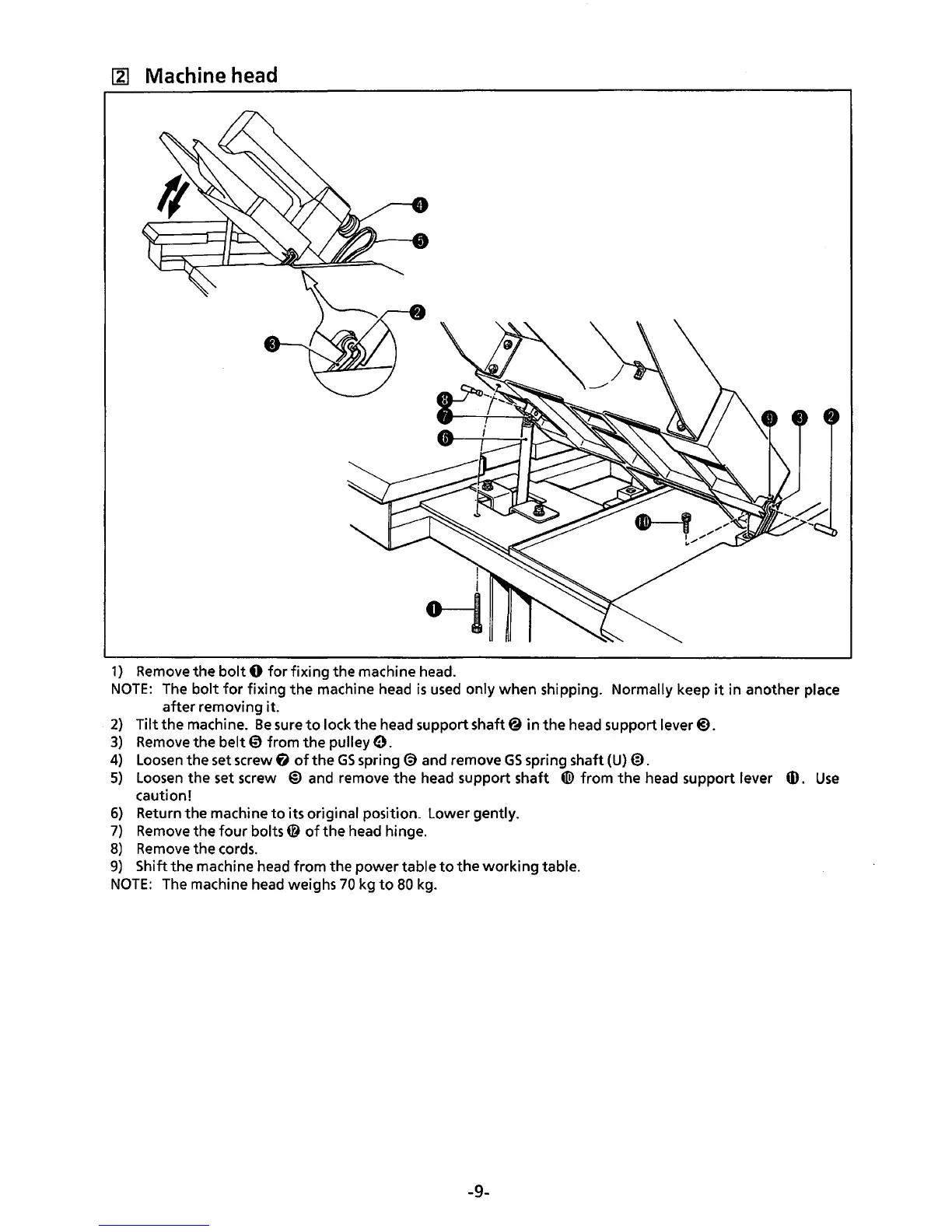

~ Machine head
1} Remove the bolt 0 for fixing the machine head.
NOTE: The bolt for fixing the machine head is used only when shipping. Normally keep it in another place
after removing it.
2) Tilt the machine. Be sure to lock the head support shaft@ in the head support lever@).
3} Remove the belt €) from the pulley 9.
4) Loosen the set screw f) of the GS spring @) and remove GS spring shaft (U}@.
5) Loosen the set screw @) and remove the head support shaft ((i) from the head support lever (f). Use
caution!
6} Return the machine to its original position. Lower gently.
7) Remove the four bolts@ of the head hinge.
8) Remove the cords.
9) Shift the machine head from the power table to the working table.
NOTE: The machine head weighs 70 kg to 80 kg.
-9-
