Brother BAS-340 - Longitudinal Feed Mechanism (y Axis)

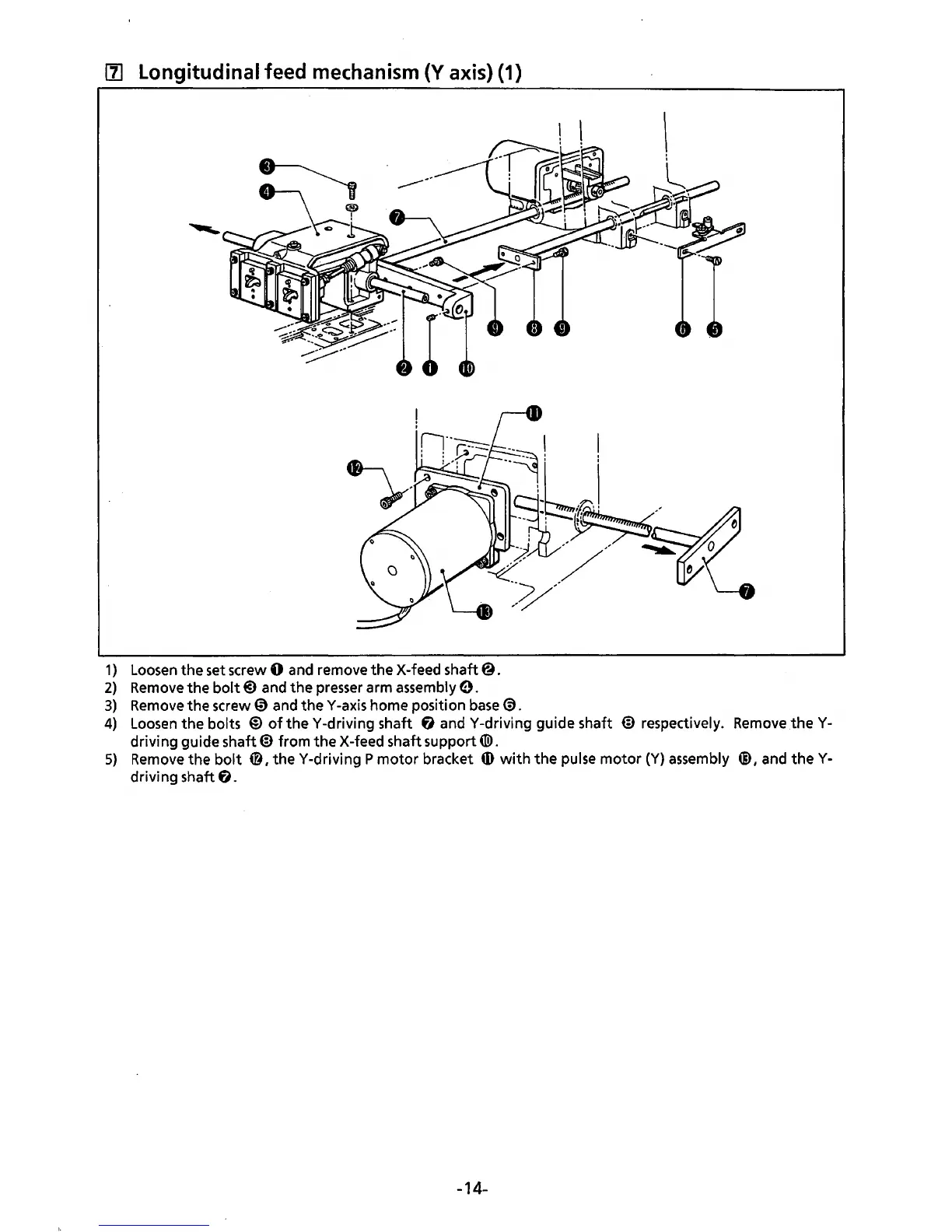

[1] Longitudinal feed mechanism (Y axis) (1)
1} Loosen the set screw 0 and remove the X-feed shaft@.
2} Remove the bolt@) and the presser arm assembly 0.
3} Remove the screw 0 and theY -axis home position base @.
4} Loosen the bolts @) of theY-driving shaft f) andY-driving guide shaft ED respectively. Remove theY-
drivi ng guide shaft ED from the X-feed shaft support tiD.
5} Remove the bolt 0, theY-driving P motor bracket ID with the pulse motor (Y} assembly ®,and theY-
driving shaft fJ.
-14-
