~ DIP switch

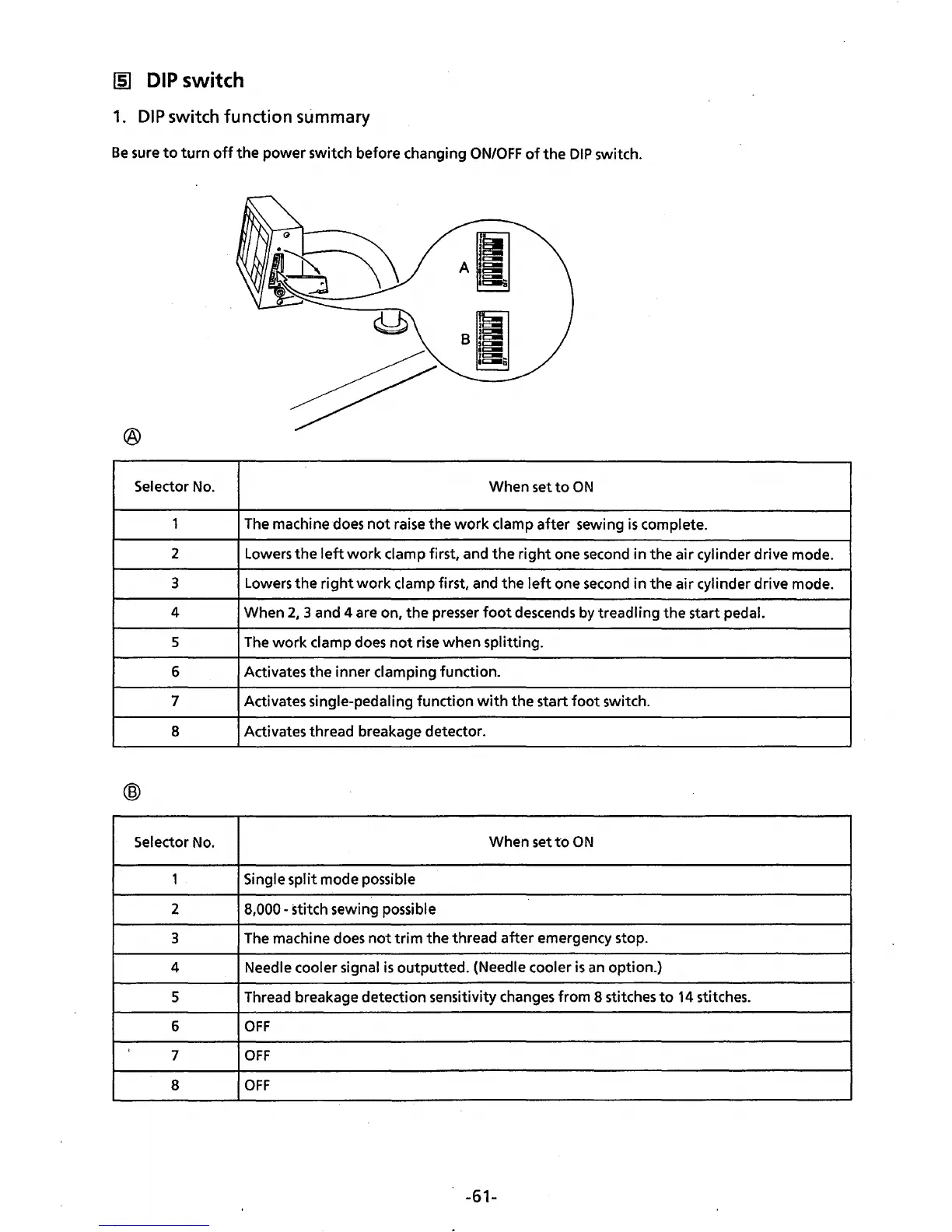

1. DIP switch function summary
Be sure to turn off the power switch before changing ON/OFF of the DIP switch.
®
Selector No.
When set
to ON
1
The machine does not raise the work clamp after sewing is complete.
2
Lowers the left work clamp first, and the right one second in the air cylinder drive mode.
3
Lowers
the right work clamp first, and the left one second in the air cylinder drive mode.
4
When
2, 3 and 4 are on, the presser foot descends by treadling the start pedal.
5
The work clamp does not rise when splitting.
6
Activates the inner clamping function.
7
Activates single-pedaling function with the start foot switch.
8 Activates thread breakage detector.
@
Selector No.
When set to ON
1 Single split mode possible
2 8,000- stitch sewing possible
3
The machine does not trim the thread after emergency stop.
4 Needle cooler signal
is outputted. (Needle cooler is an option.)
5 Thread breakage detection sensitivity changes from 8 stitches to 14 stitches.
6 OFF
'
7
OFF
8 OFF
