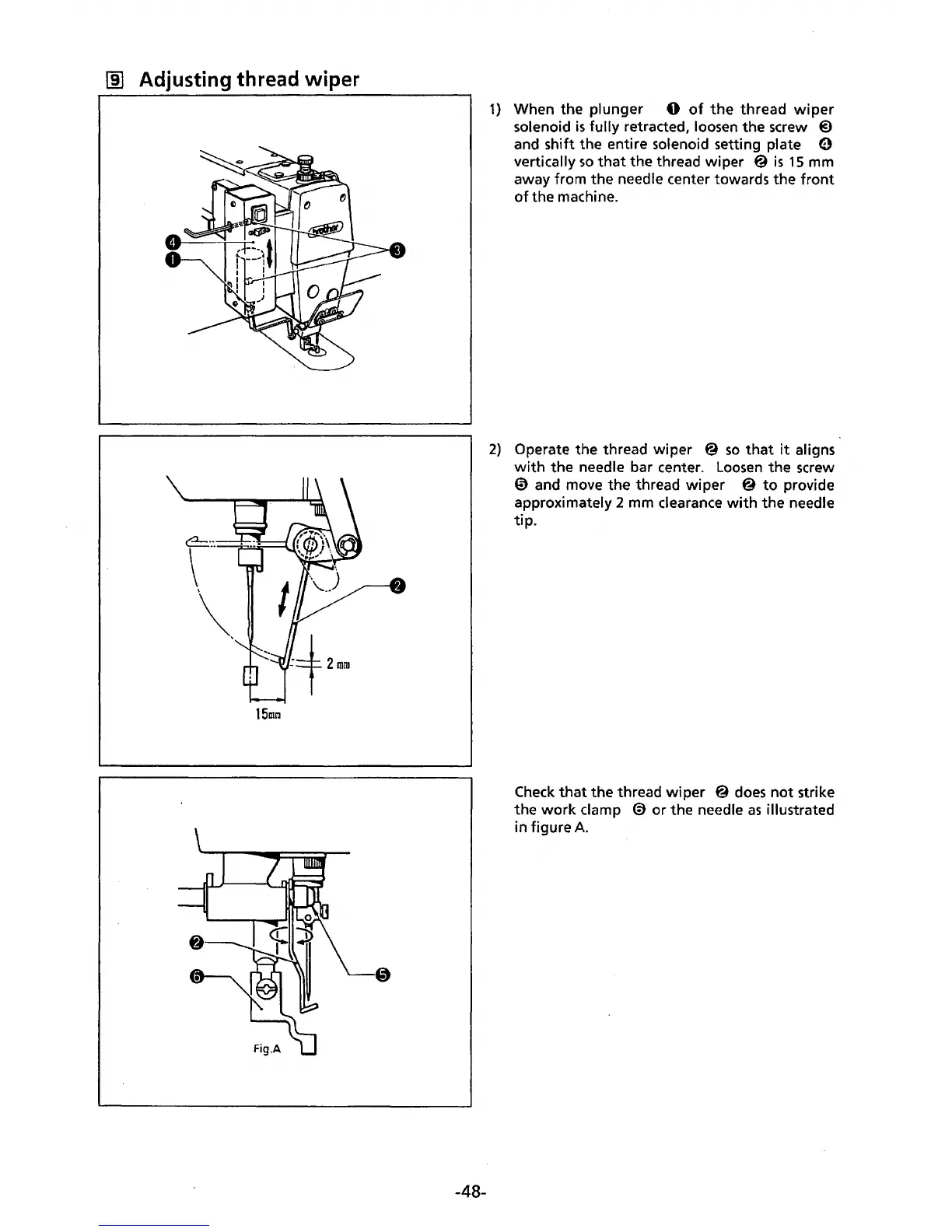

[iJ Adjusting thread wiper
15mrn
-48-
1) When the plunger 0 of the thread wiper
solenoid is fully retracted, loosen the screw @)
and shift the entire solenoid setting plate a
vertically so that the thread wiper @ is 15 mm
away from the needle center towards the
front
of the machine.
2) Operate the thread wiper @ so that it aligns
with the needle bar center. Loosen the screw
0 and move the thread wiper @ to provide
approximately 2 mm clearance with the needle
tip.
Check that the thread wiper @ does not strike
the
work clamp @) or the needle as illustrated
in figure
A.
