Brother BAS-340 - Work Clamp Lifter Mechanism

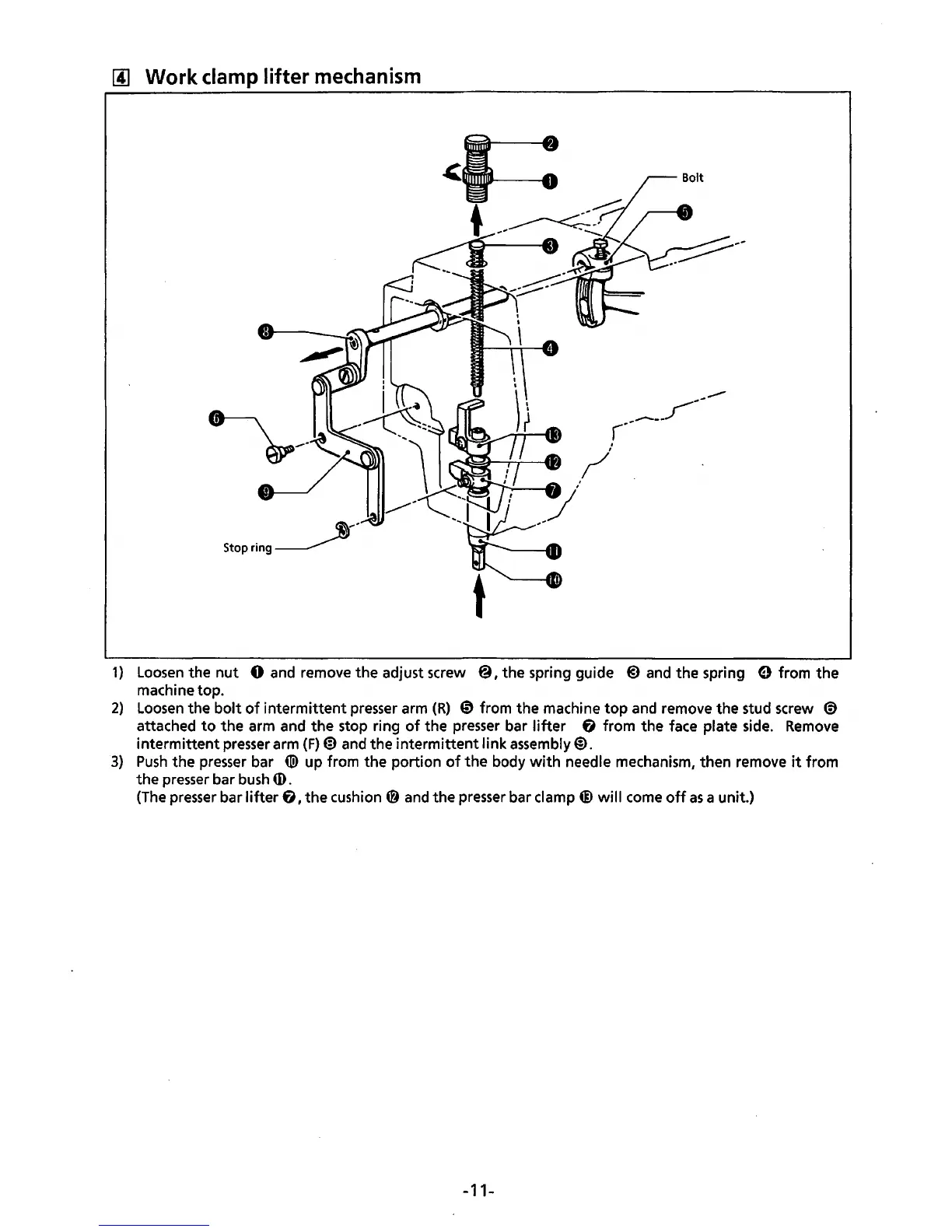

[j] Work clamp lifter mechanism
Stop ring~ .... -
1) Loosen the nut 0 and remove the adjust screw @,the spring guide @) and the spring 0 from the
machine top.
2) Loosen the bolt of intermittent presser arm (R) @ from the machine top and remove the stud screw @
attached to the arm and the stop ring of the presser bar lifter f) from the face plate side. Remove
intermittent presser arm (F)@ and the intermittent link assembly@.
3) Push the presser bar tiD up from the portion of the body with needle mechanism, then remove it from
the presser bar bush ID.
(The presser bar lifter f), the cushion @ and the presser bar clamp@ will come off as a unit.)
-11-
