Brother BAS-340 - Lid Adjusting Shuttle Race Thread Guide

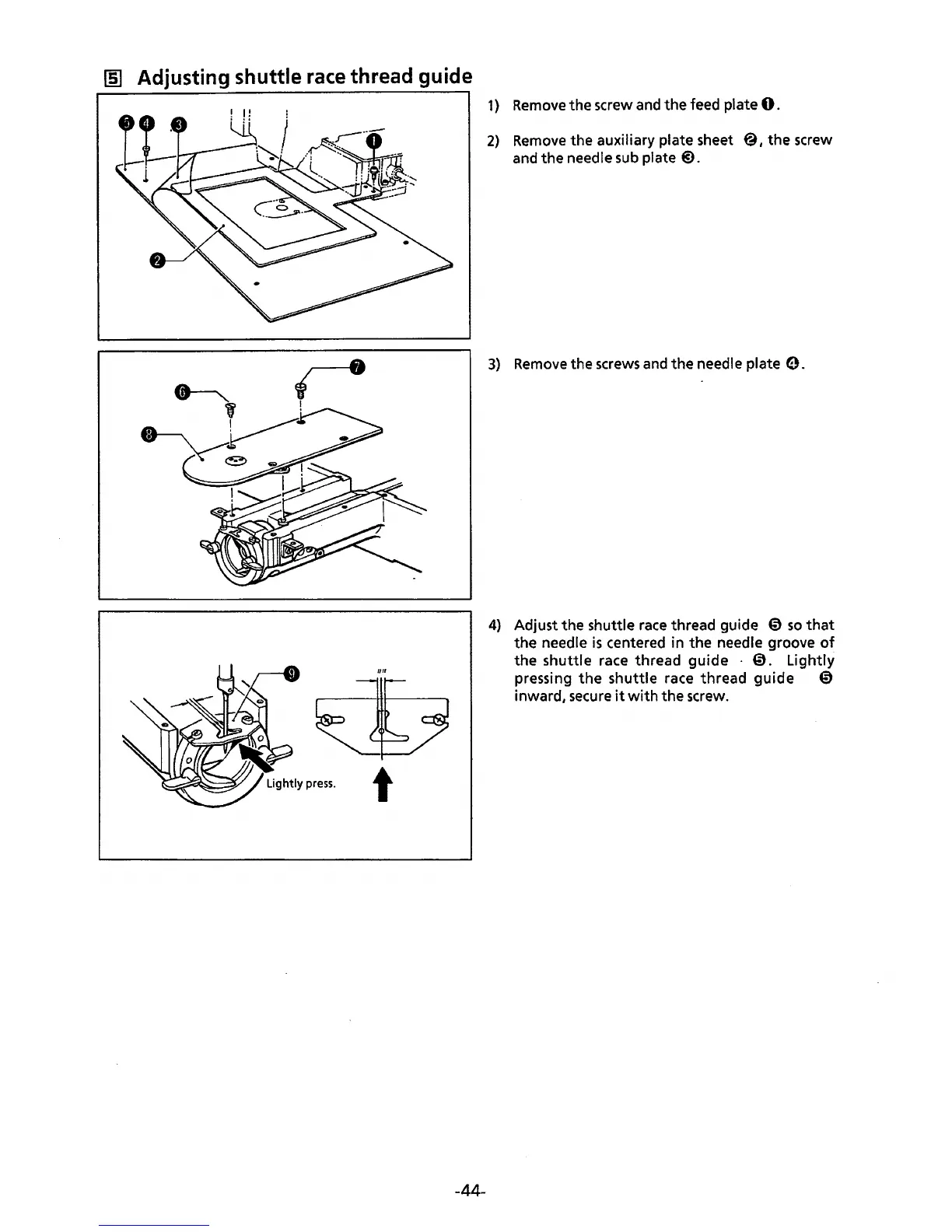

~ Adjusting shuttle race thread guide
r
!
Ull
t
-44-
1) Remove the screw and the feed plate 0.
2) Remove the auxiliary plate sheet @, the screw
and the needle sub plate @).
3) Remove the screws and the needle plate 0.
4) Adjust the shuttle race thread guide 0 so that
the needle is centered in the needle groove of
the shuttle race thread guide · 0. Lightly
pressing
the shuttle race thread guide 0
inward, secure it with the screw.
