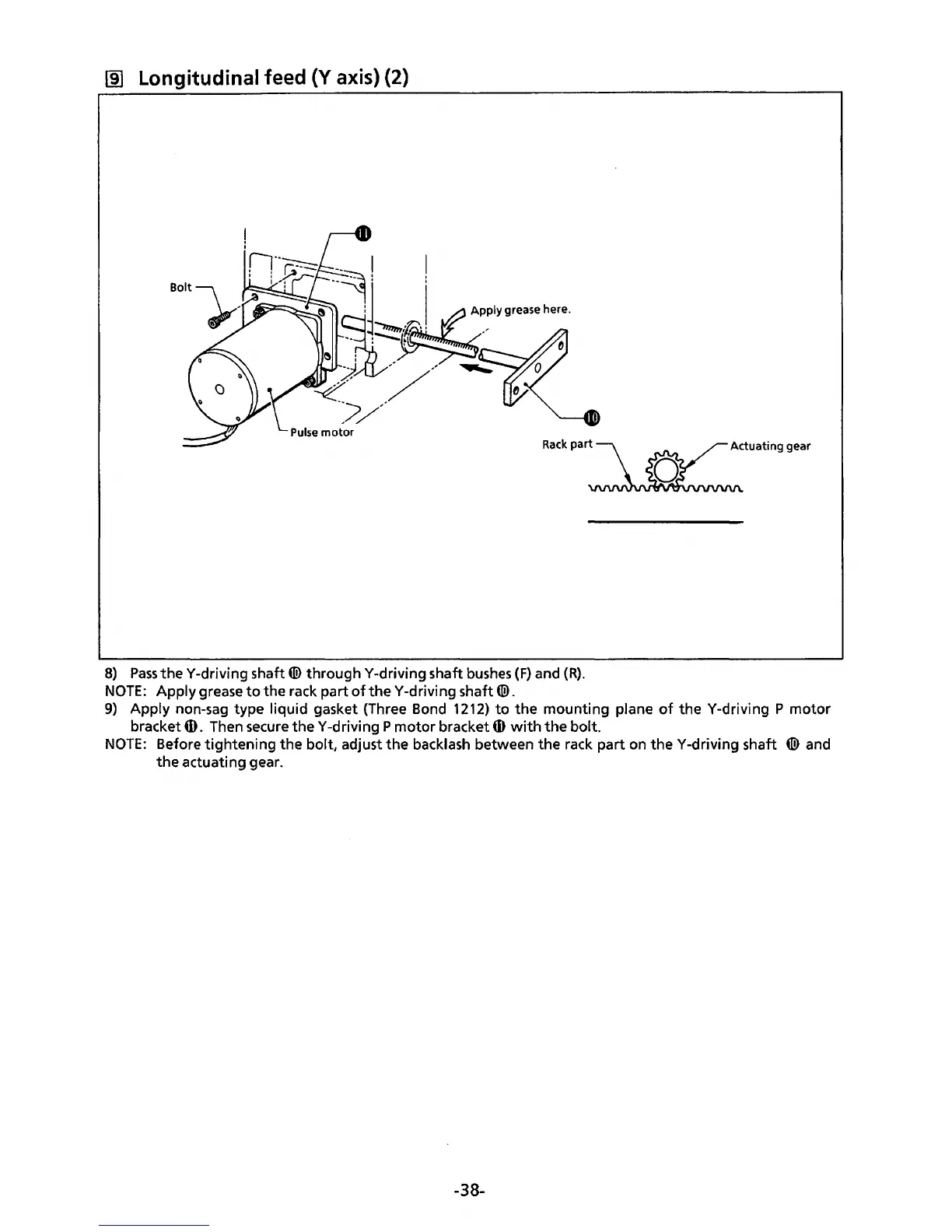

~ Longitudinal feed (Y axis) (2)
Pulse motor
Rack pa~ctuating gear
8) Pass theY-driving shaft@ through Y-driving shaft bushes (F) and (R).
NOTE: Apply grease to the rack part of theY -driving shaft®.
9) Apply non-sag type liquid gasket (Three Bond 1212) to the mounting plane of theY-driving P motor
bracket ID. Then secure theY -driving P motor bracket ID with the bolt.
NOTE: Before tightening the bolt, adjust the backlash between the rack part on theY-driving shaft @ and
the actuating gear.
