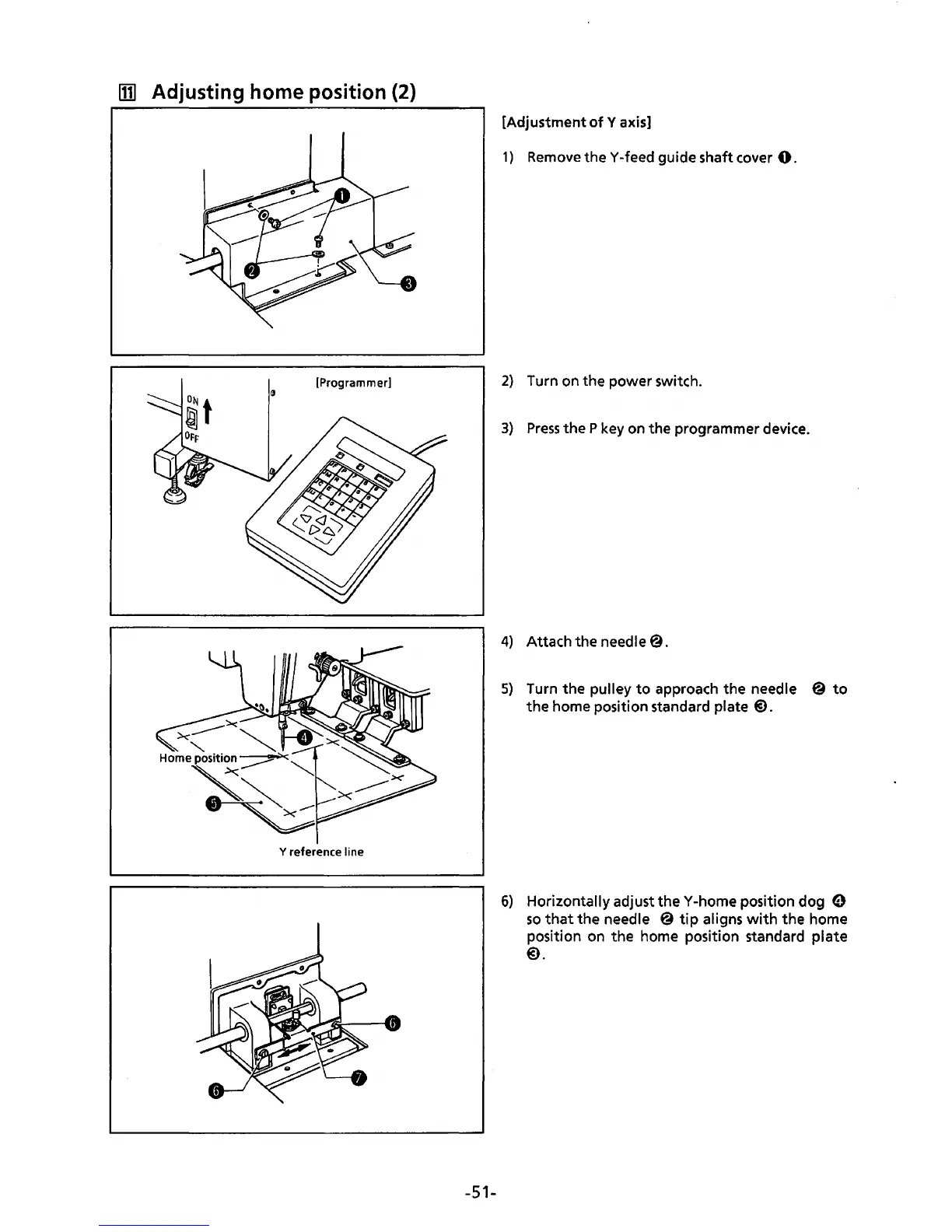

Adjusting home position (2)
[Programmer]
Y reference line
-51-
[Adjustment
of
Y axis]
1)
Remove
theY-feed guide shaft cover
0.
2)
Turn on the power switch.
3)
Press
the P key on the programmer device.
4)
Attach the needle@.
5)
Turn the pulley
to
approach the needle @
to
the home position standard plate
@).
6)
Horizontally adjust theY-home position dog 0
so
that
the needle
@tip
aligns
with
the
home
position on the home position standard
plate
@).
