Brother DCP-J752DW

3-15
Confidential

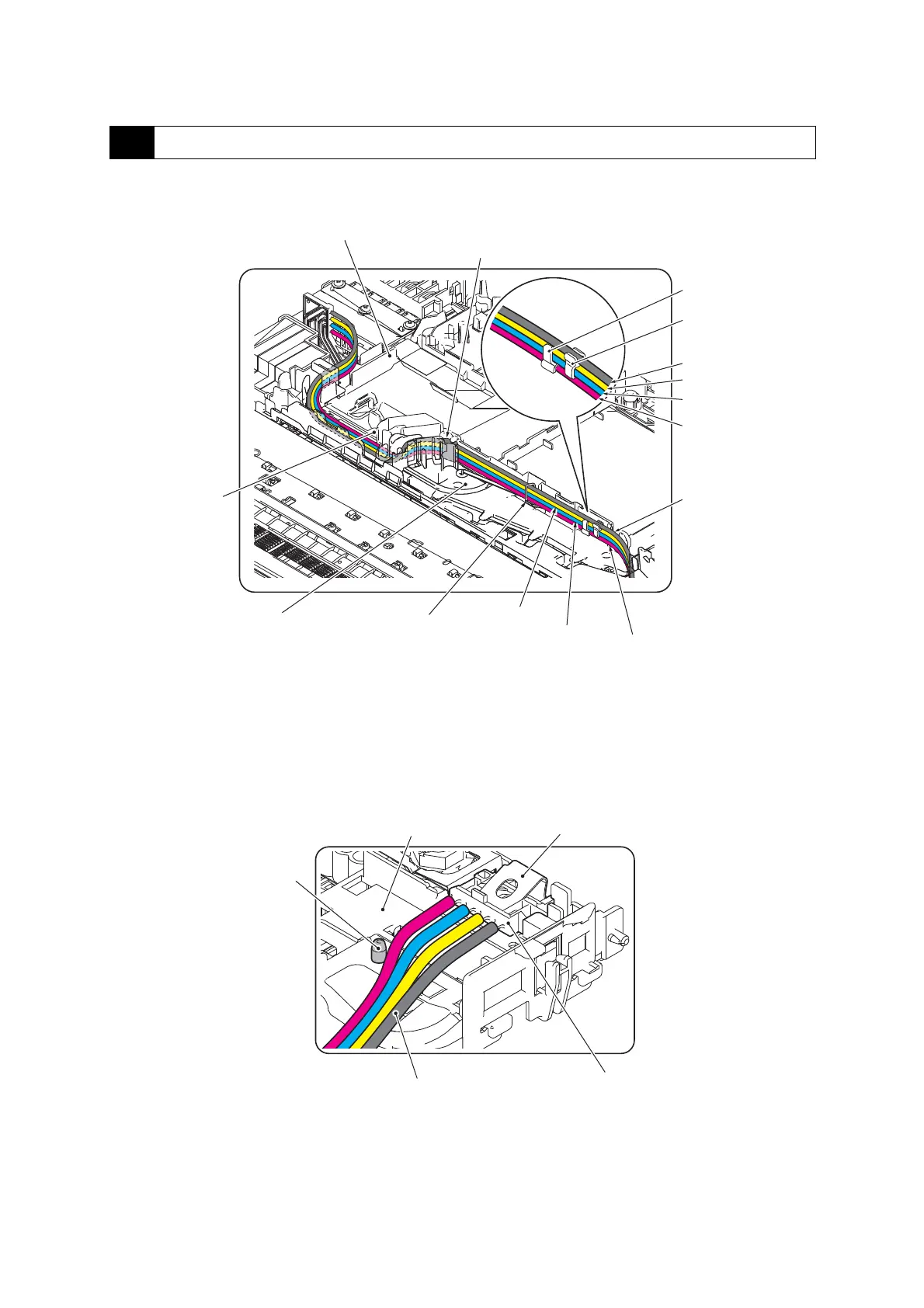

Note Bind the ink tubes with the two tube clamps. Bind magenta, cyan, and yellow together from
the bottom with tube clamp (1). Bind black, yellow, and cyan from the top with tube clamp (2).
Note Make sure that all of the four ink supply tubes are routed in front of the guide boss as shown
above.
8
Tube support plate and head/carriage unit top: ink supply tube
(3_021)
Lower cover
Sponge
Tube
clamp (1)
Tube
clamp (2)
Black
Yellow
Cyan
Magenta
Black
Magenta
Cyan
Yellow
Tube support wire elbow
Tube support plate
Tube guide
(Rear)
(3_022)
Head joint spring
Head/carriage unit
Ink supply tubes
Head joint
Guide boss
