9.19 Maintenance unit

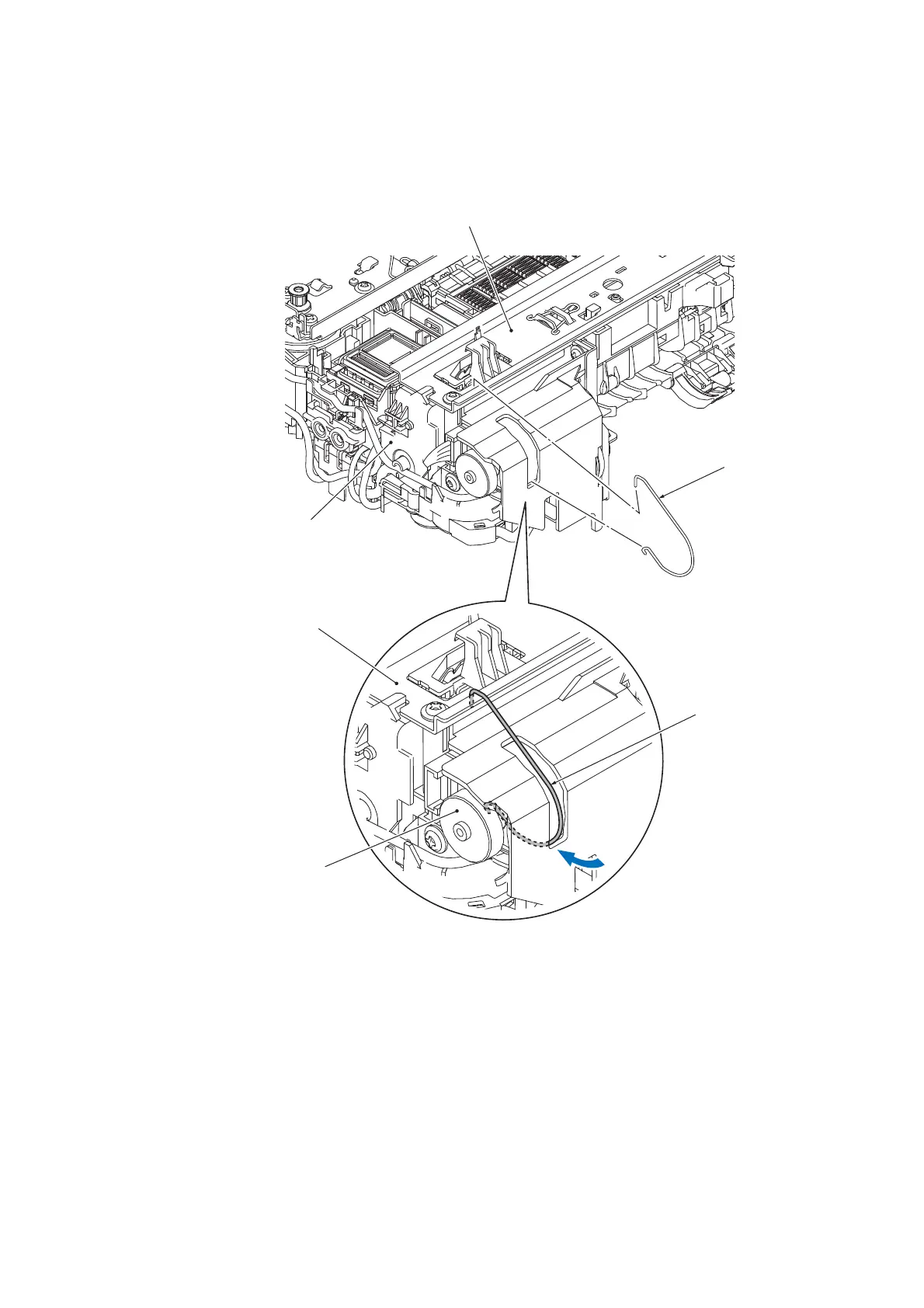

(1) Release the upper and lower ends of the earth spring from the CR guide rail and the ASF motor,
respectively.
Assembling Note When mounting the earth spring, be careful not to contaminate it with grease.
When attaching the earth spring, insert the lower end first into the bottom of the ASF motor. Coil it
around the ASF motor by the force of the spring. Next, hook the upper end to the CR guide rail.
(3_105)
(Rear)
Earth spring
CR guide rail
ASF motor
Earth spring
CR guide rail
Maintenance unit
