Brother DCP-J752DW

2-3
Confidential
2OVERVIEW

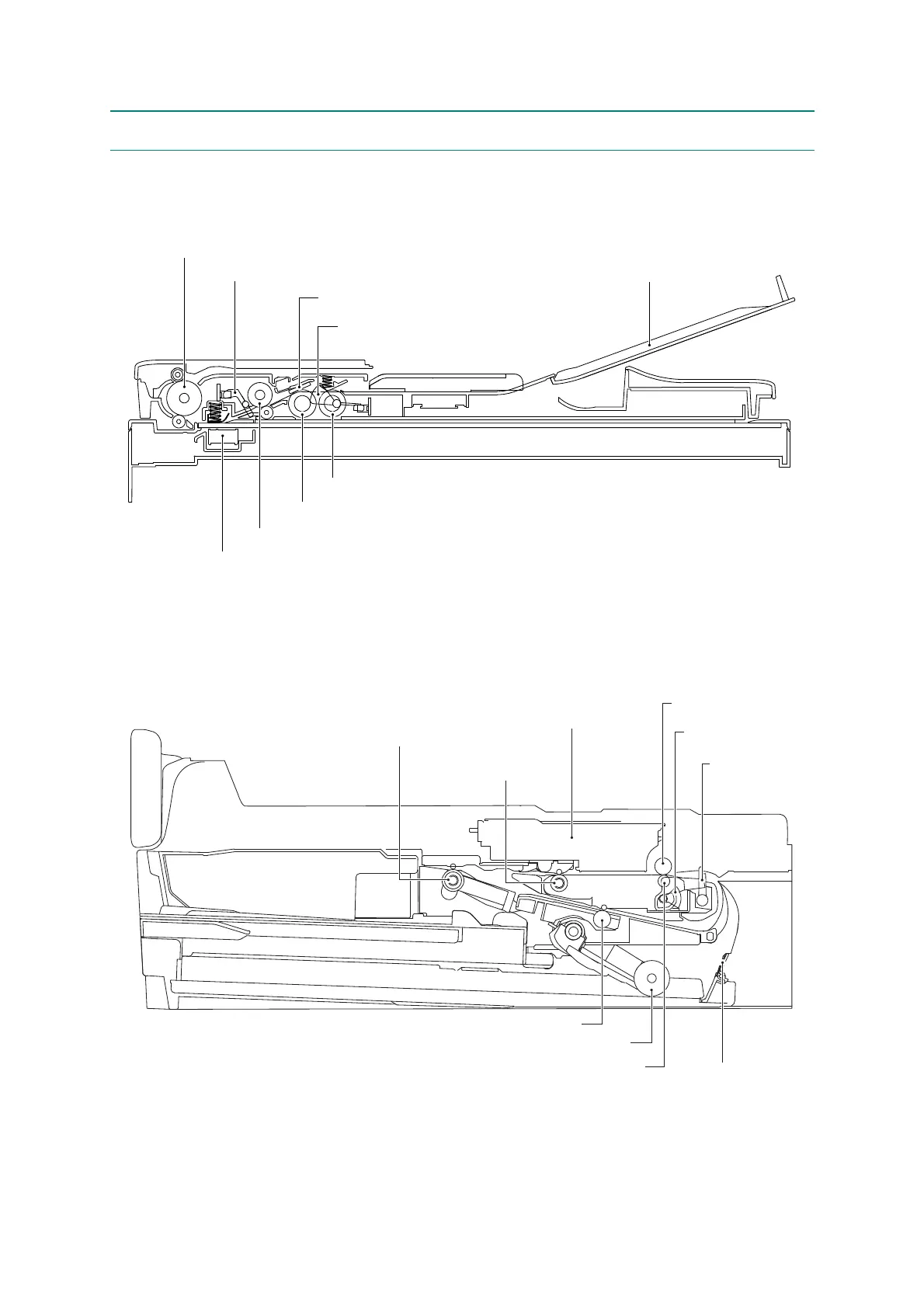

2.1 Cross-section Drawings
2.1.1 Document scanning
2.1.2 Printer part
Document scanning position actuator
ADF document support
Document detection actuator
CIS unit
Document feed roller 1
Document separation roller
Document feed roller 2
ADF separation pad
Document pick-up roller
Paper ejection roller
Switchback roller
Paper feed roller
Pressure roller release
actuator
Pressure roller
Duplex paper feed roller
Paper pull-in roller
Bank ASSY
Head/carriage unit
Registration
actuator
