Brother DCP-J752DW

3-92
Confidential

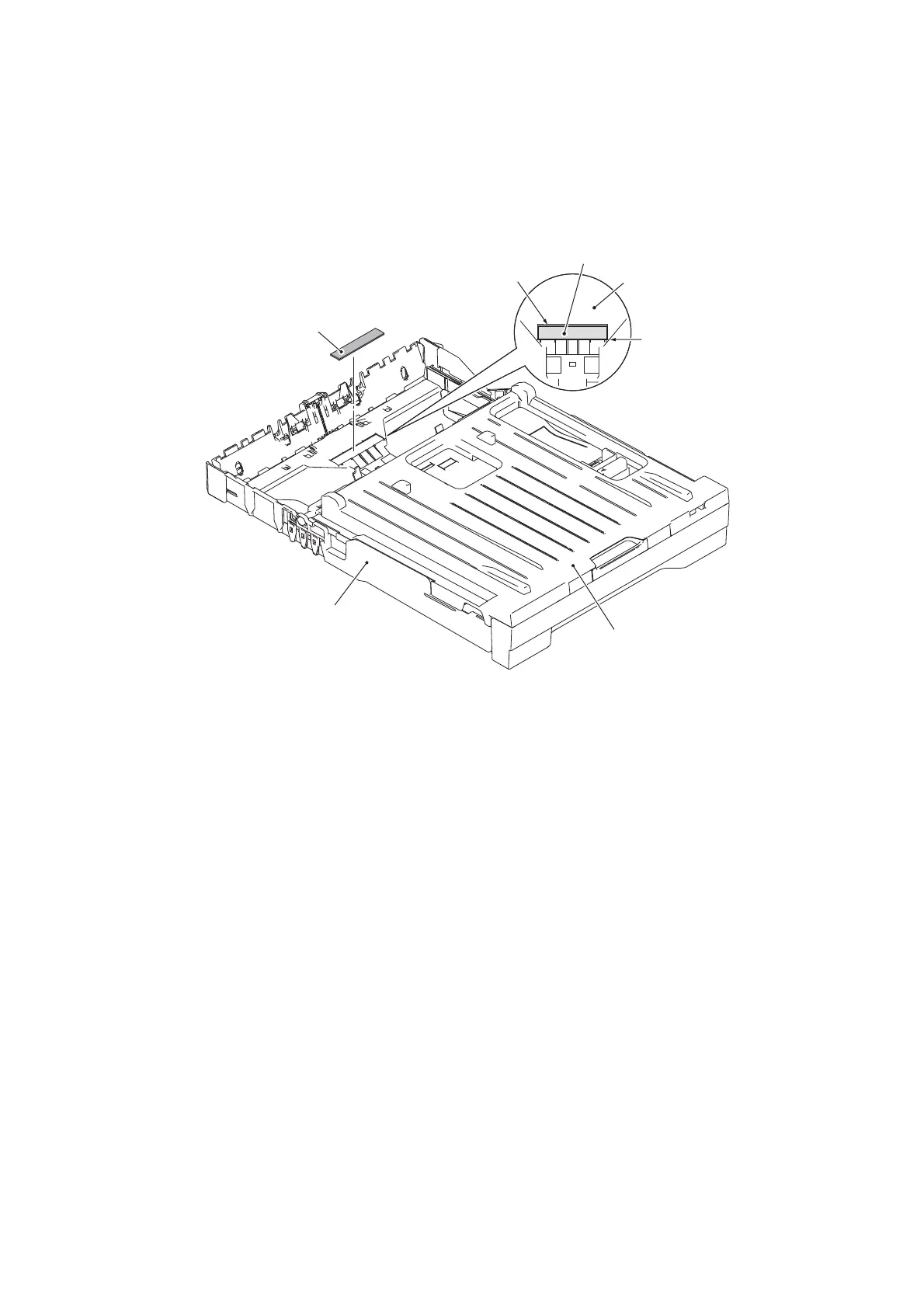

9.22 Base Pad on Paper Tray ASSY
(1) When there is a need to replace the base pad, peel it off from the bottom of the paper tray.
Note Once removed, the base pad will become unusable and will need to be replaced with a new
one.
Assembling Note When attaching a new base pad to the paper tray, align the front end of the pad
with the front end of the depression, and the left and right position with the center of the depression,
as shown above.
(3_119)
Base pad
Depression
Base pad
Paper tray
Align the base pad edge with
the front end of the depression
(this line) at the bottom of the
paper tray.
Output paper tray cover
Paper tray
