Brother DCP-J752DW

3-70
Confidential
Assembling Note
• When installing the carriage PCB ASSY, route the carriage flat cable as refer to Section 7-7 in
this chapter.
• When replacing the carriage PCB ASSY, remove the flat core from the old carriage PCB ASSY.
After attaching the old flat core to the new flat cable, attach the sponge to the leading edge of the
flat cable.

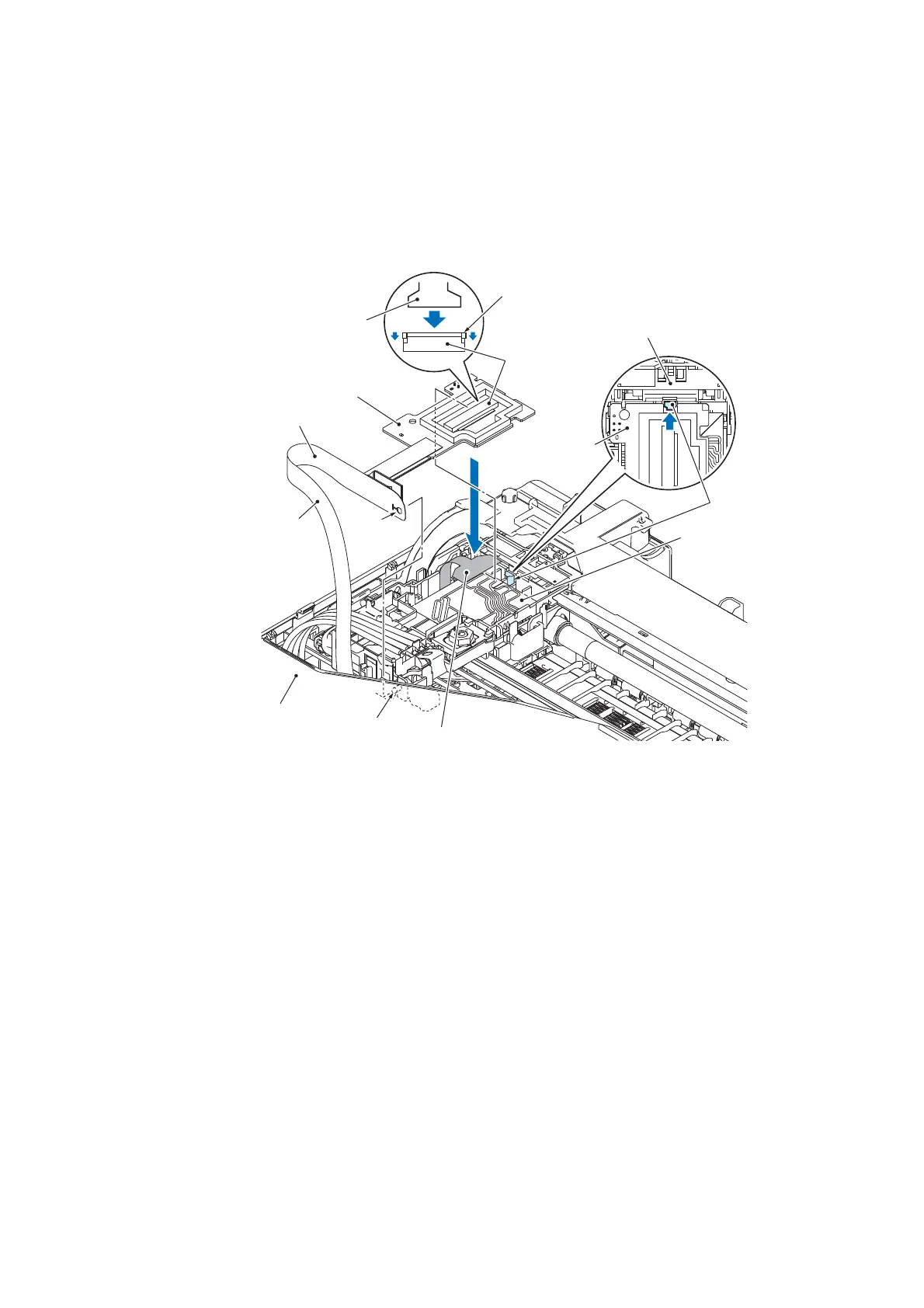

(3_095)
Head/carriage unit
Lock spring
Carriage PCB
ASSY
Head flat cable
Carriage flat cable
Remove by pulling the lock
Carriage PCB ASSY
Opening
Film
Upper cover
Boss
Head flat cable
Head/carriage unit
