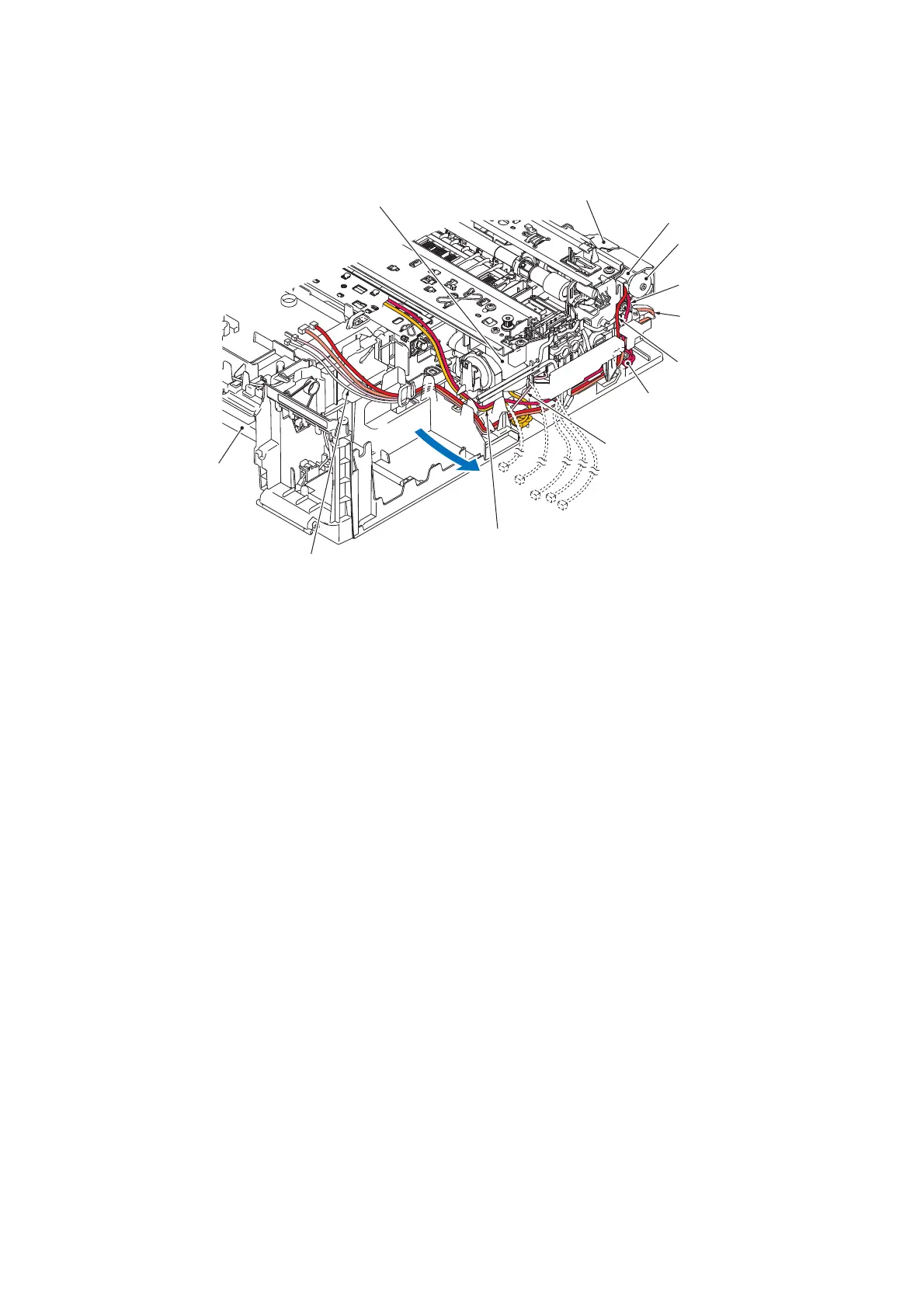

(3) On the right side of the lower cover, remove the five harnesses connected to the engine unit
from the cable guide.
(3_101)
Speaker harness
Lower cover
(Right)
Purge cam switch harness
Carriage motor harness
Pressure roller release
sensor harness
ASF motor harness
ASF encoder sensor
harness
Ferrite core of ASF
motor harness
ASF encoder disk
ASF motor/encoder PCB
Carriage motor
ASF motor
