Brother DCP-J752DW

3-84
Confidential
Carriage motor

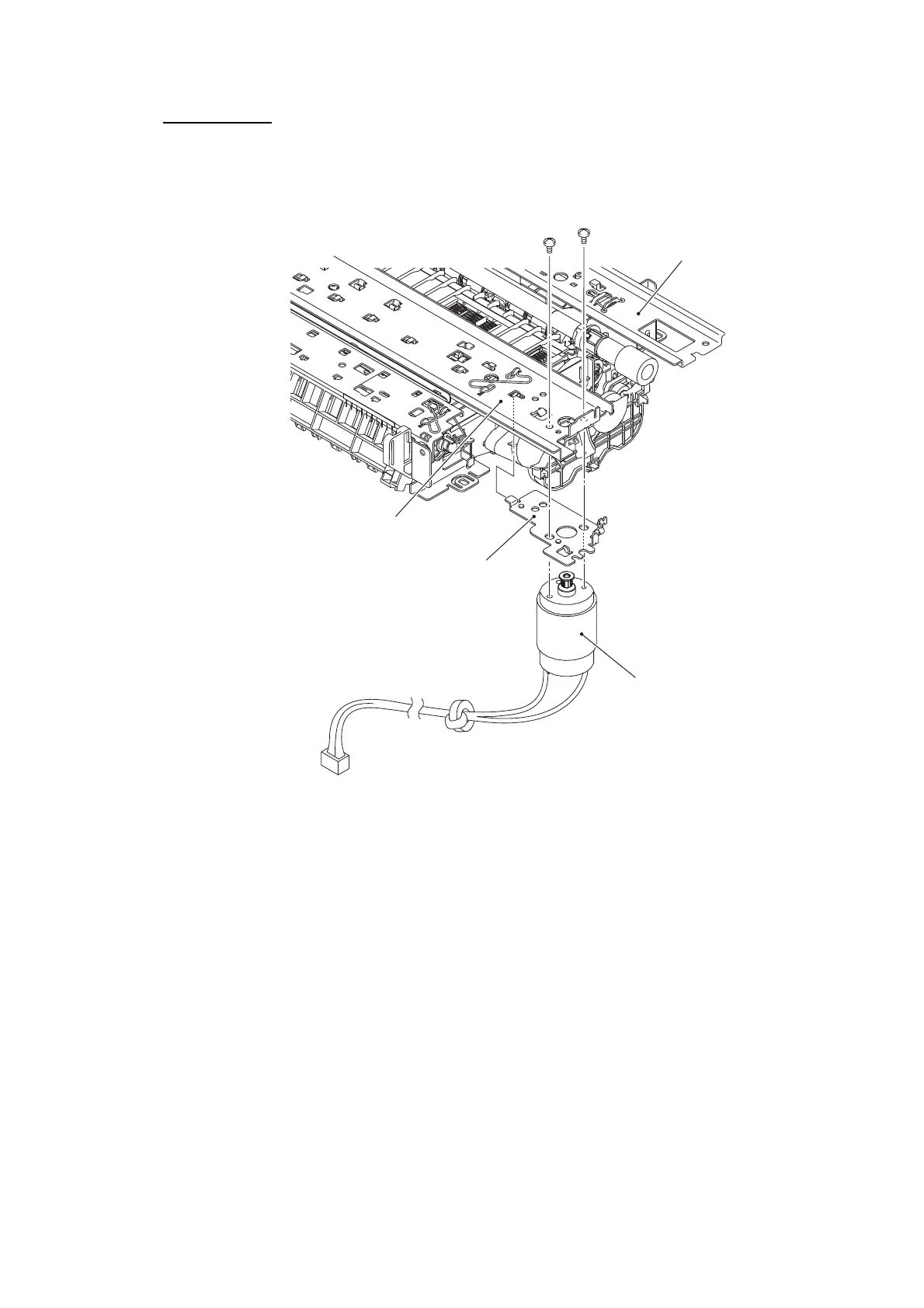

(5) Remove the two screws of the SCREW BIND M3x6 from the CR frame, and remove the
carriage motor and motor bracket from the engine unit.
(3_108)
(Rear)
SCREW BIND M3x6
CR guide rail
Motor bracket
Carriage motor
CR frame
