HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
3-47
(3) Put the Holder bearing MP into the MP feed frame and turn the Holder bearing MP to the
direction of the arrow 3c to lock.

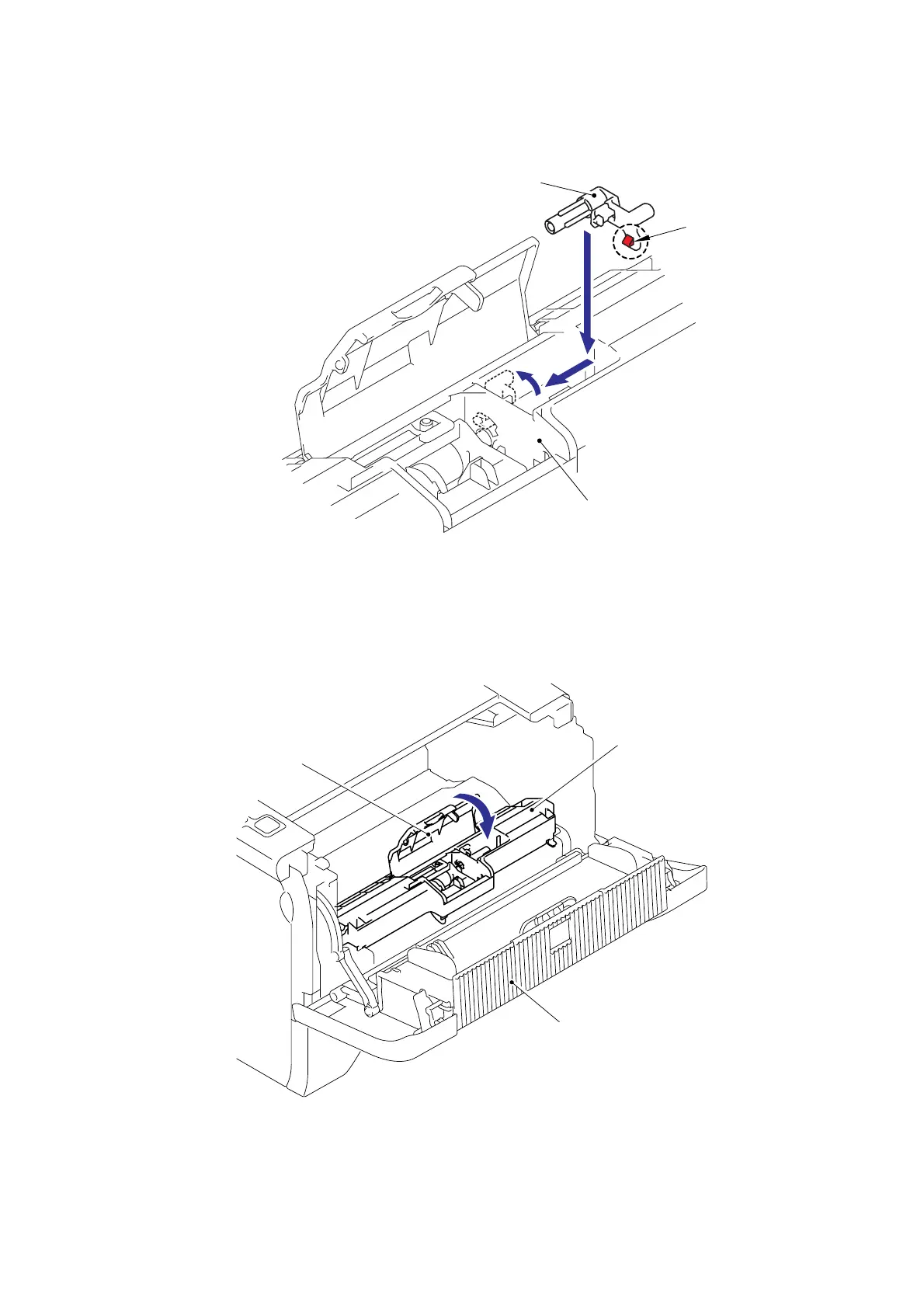

Fig. 3-81
(4) Close the MP feed frame cover.
Fig. 3-82
Holder bearing MP
Hook
MP feed frame cover
Front cover
MP feed frame
3a
3b
3c
MP feed frame
