CHAPTER 3 PERIODIC MAINTENANCE

Confidential

3-46

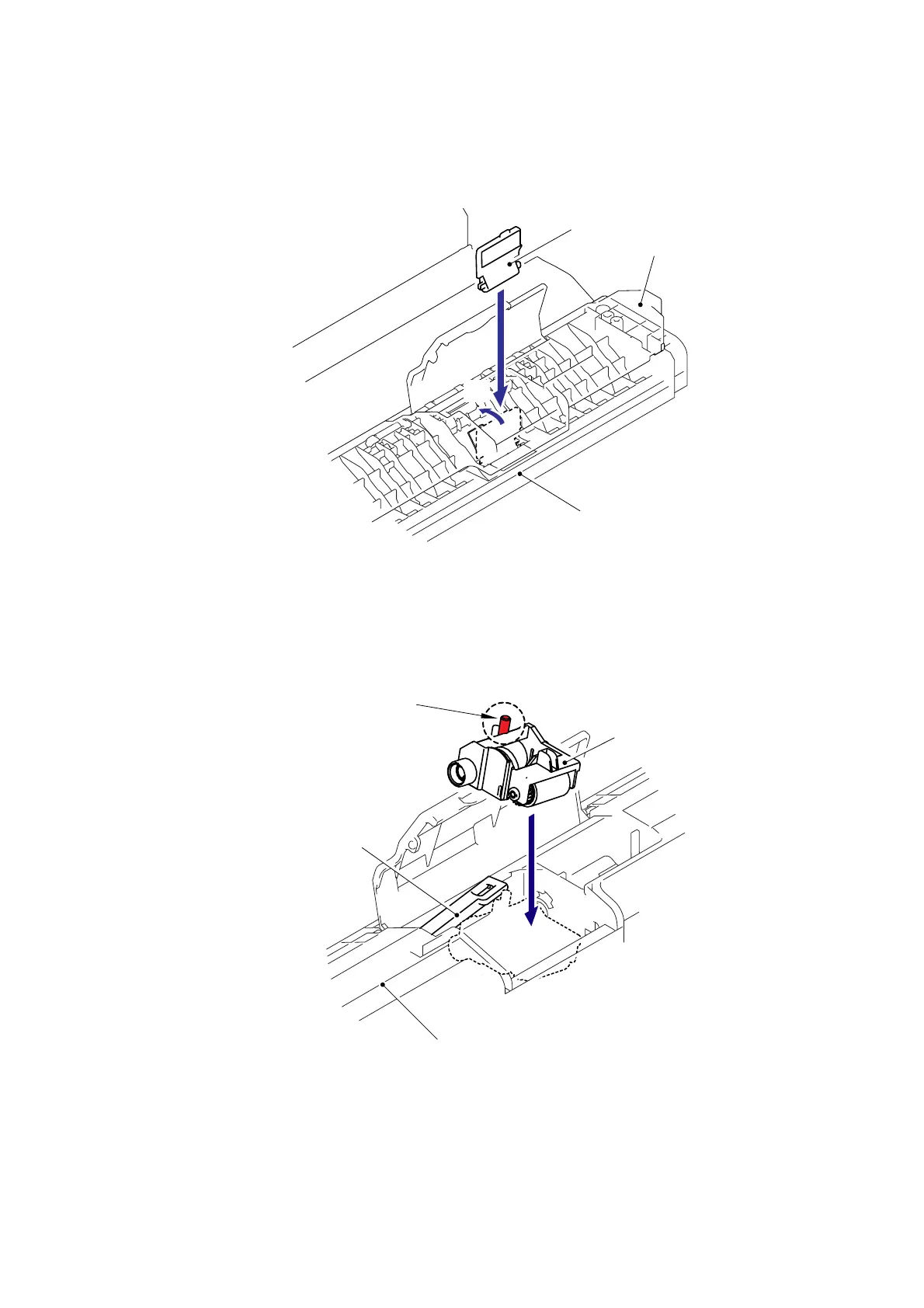

< Installing Procedure >

(1) Put the Hook of the Separation pad ASSY MP into the MP feed frame and pull down the

Separation pad ASSY MP to the direction of the arrow 1b until it is locked.

Fig. 3-79

(2) Lift up the Lift arm MP and put the MP roller holder ASSY into the MP feed frame. Put the

Pin of the MP roller holder ASSY into the hole of the Lift arm MP.

Fig. 3-80

Separation pad ASSY MP

MP roller holder ASSY

MP feed frame

MP frame

MP feed frame

Lift arm MP
