HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
3-45

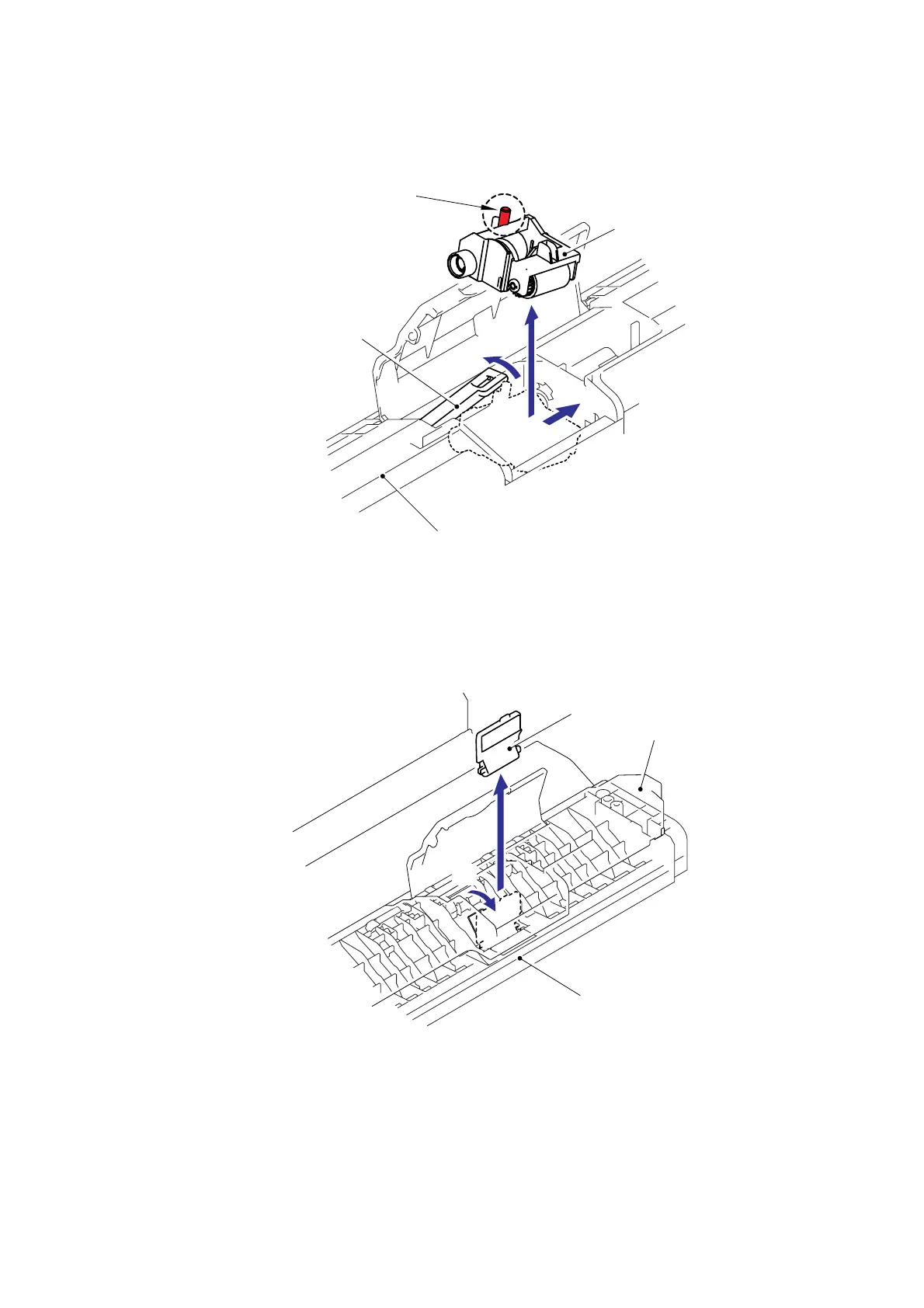

(7) Lift up the Lift arm MP to release it from the Pin of the MP roller holder ASSY.
(8) Slide the MP roller holder ASSY to the direction of the arrow 8a and put it up to remove.
Fig. 3-77
(9) Turn the back side of the Separation pad ASSY MP to the direction of the arrow 9a and put
it up to remove.
Fig. 3-78
Separation pad ASSY MP
MP roller holder ASSY
Pin
MP feed frame
Lift arm MP
7
8a
8b
MP feed frame
MP frame
9b
9a
