CHAPTER 4 TROUBLESHOOTING
Confidential
4-22
(3) Push down the blue lock lever and take the toner cartridge out of the drum unit. Clear
the jammed paper if there is any inside the drum unit.

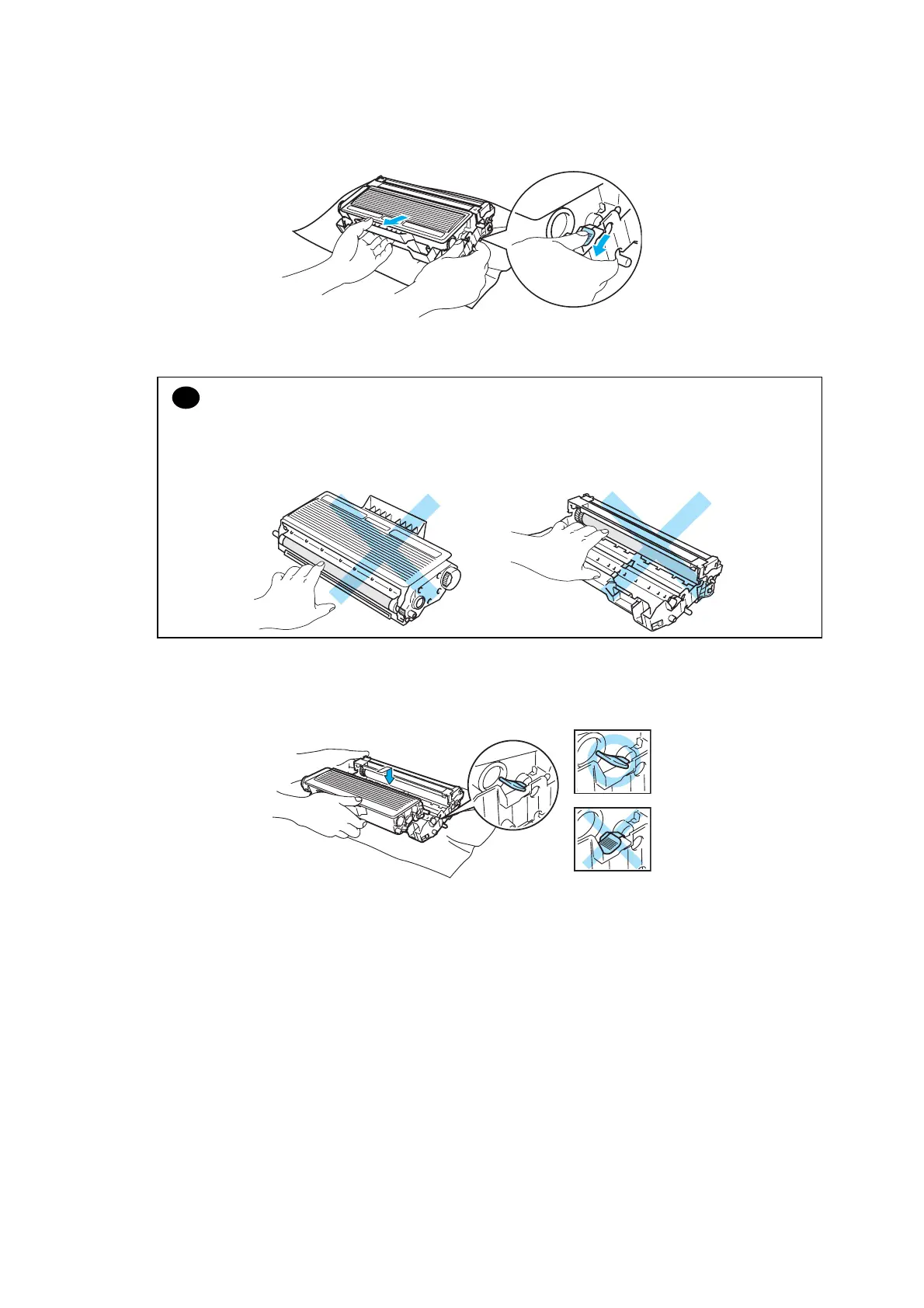

Fig. 4-11
!
CAUTION:
* Handle the toner cartridge carefully. If toner scatters on your hands or clothes, wipe or wash
it off with cold water at once.
* To avoid print quality problems, DO NOT touch the shaded parts shown in the illustrations.
(4) Put the toner cartridge back into the drum unit until you hear it lock into place. If you
put the cartridge in properly, the blue lock lever will lift automatically.
Fig. 4-12
(5) Close the front cover.
