CHAPTER 1 GENERAL
Confidential
1-6
(HL-5270DN/5280DW)

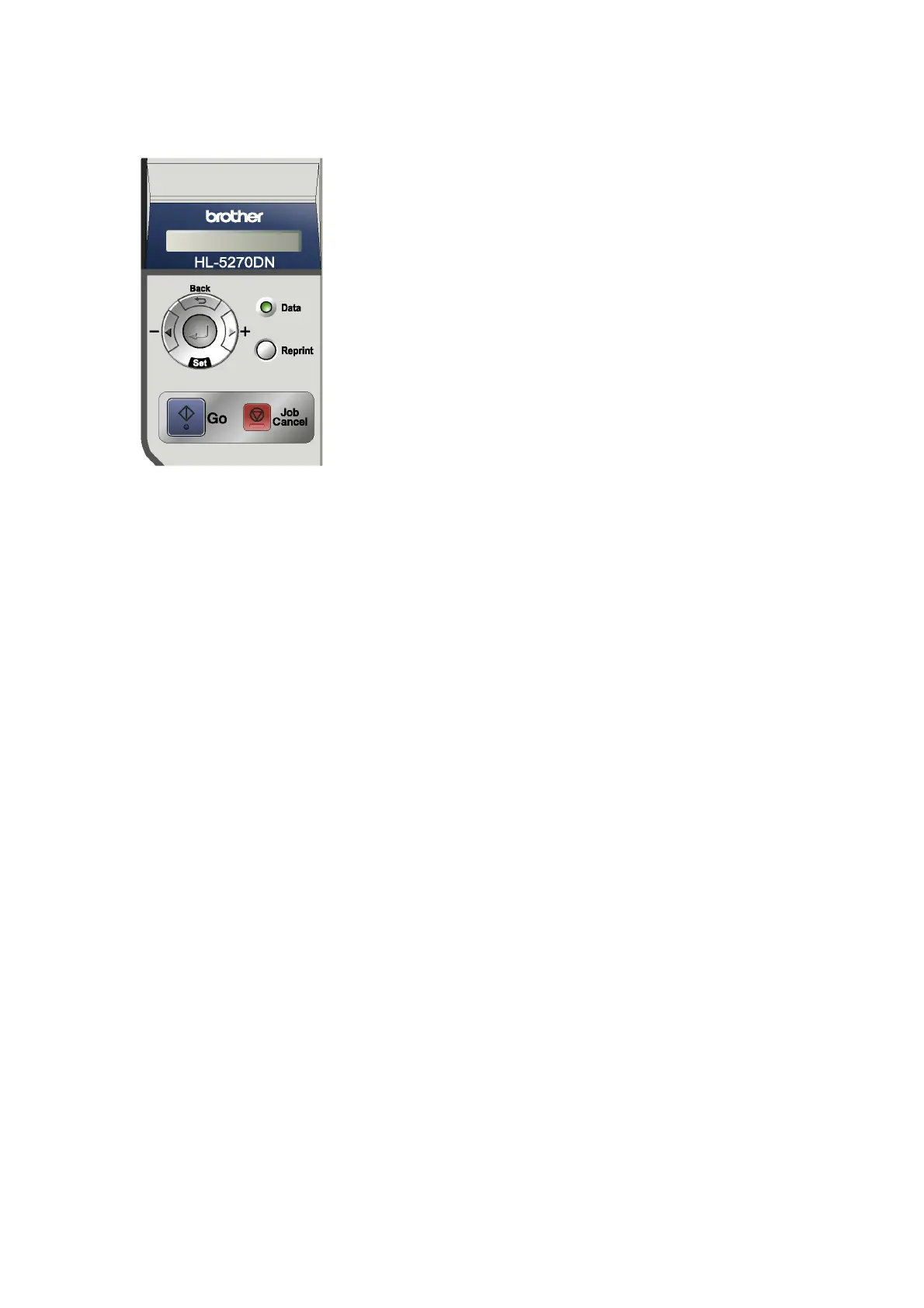

Fig. 1-6
1. LCD
• Off: The printer is off or in sleep status.
• Green (General): Ready to print.
Printing
Warming up
Job canceling
• Red (Error): There is a problem with the printer.
• Orange (Setting): The printer is offline.
Choosing a menu
Setting number of reprints.
Pause
2. Data LED: Orange
• On: Data is in the printer memory.
• Blinking: Receiving or processing data.
• Off: No remaining data in the memory.
3. Go button
Exit from the control panel menu and reprint setting.
Clear error messages.
Pause and Continue printing.
4. Job Cancel button
Stop and cancel the printing operation in progress.
5. Reprint button
Choose the reprint menu and the number of extra copies
(1-999).
Please enhance the RAMDISK size when you want to use
the Reprint functions.
6. Menu buttons
• +: Move forward through menus.
Move forward through the available options.
• -: Move backward through menus.
Move forward through the available options.
• Set: Choose the control panel menu.
Set the chosen menus and settings.
• Back: Go back one level in the menu structure.
