(4) Pull up the back side of the Separation pad ASSY.
(5) Push the Hooks provided on both sides of the Separation pad ASSY inwards.
(6) Pull up the Separation pad ASSY.

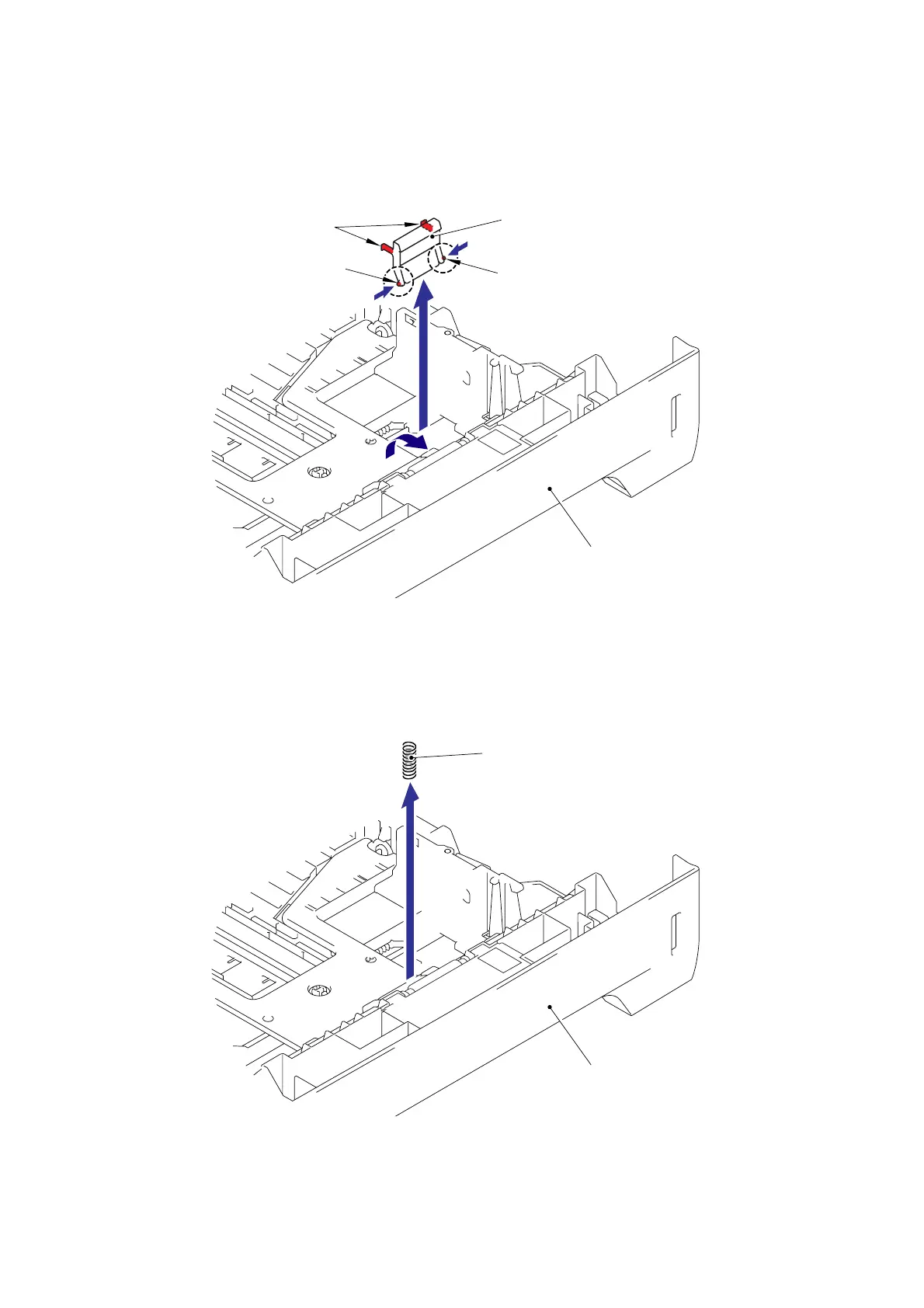

Fig. 5-6
(7) Remove the Separation pad spring.
Fig. 5-7
Hook
Paper tray
Separation pad spring
Paper tray
Separation pad ASSY
5
4
5
6
Hook
Hooks
<Front side>
