CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-18

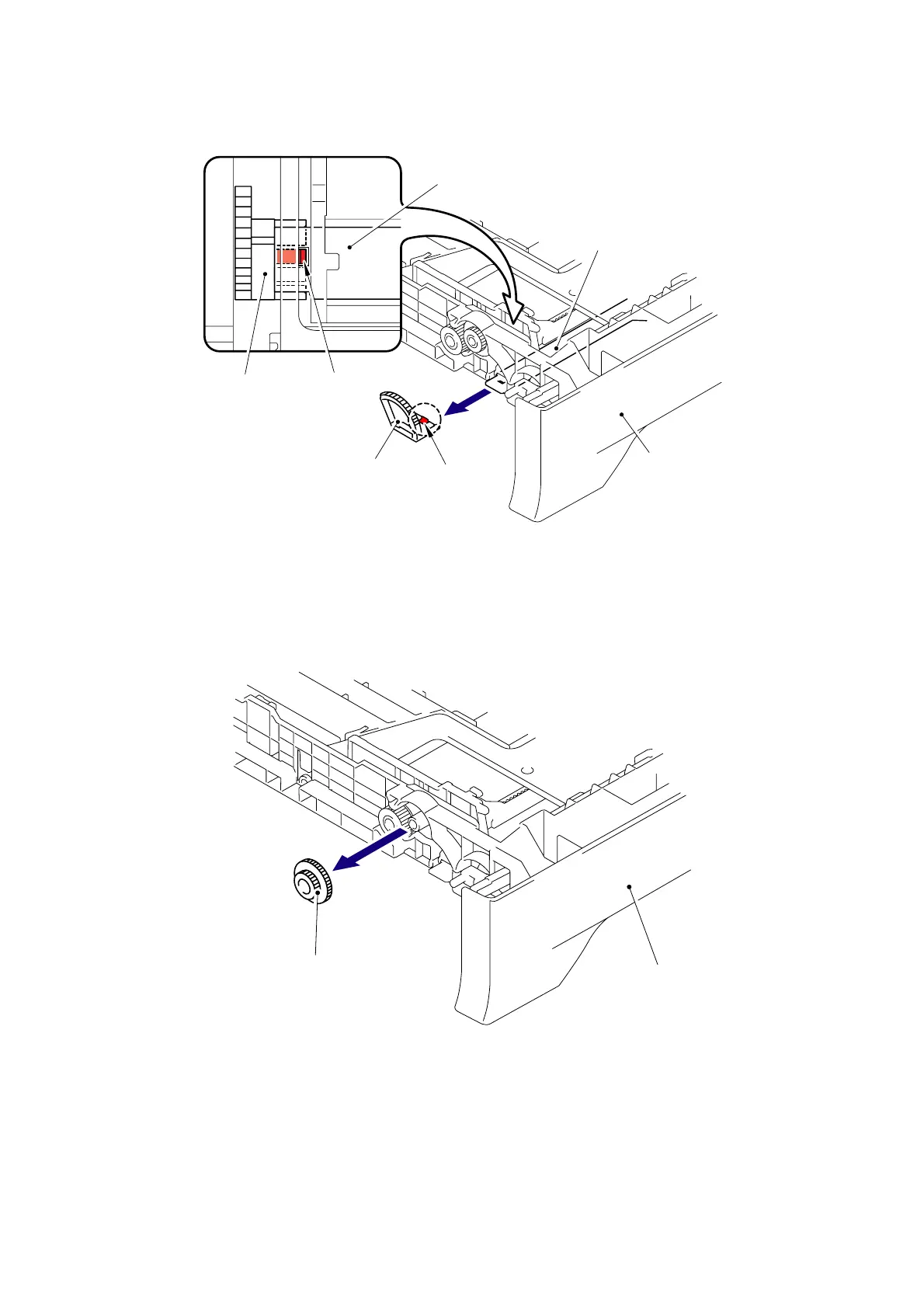

(8) Remove the Lift gear 46.
Fig. 5-8
(9) Remove the Gear 21-16.
Fig. 5-9
Paper tray
Lift gear 46
Hook
Gear 21-16
Paper tray
Plate up plate
Plate up plate
Hook
Lift gear 46
