CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-66

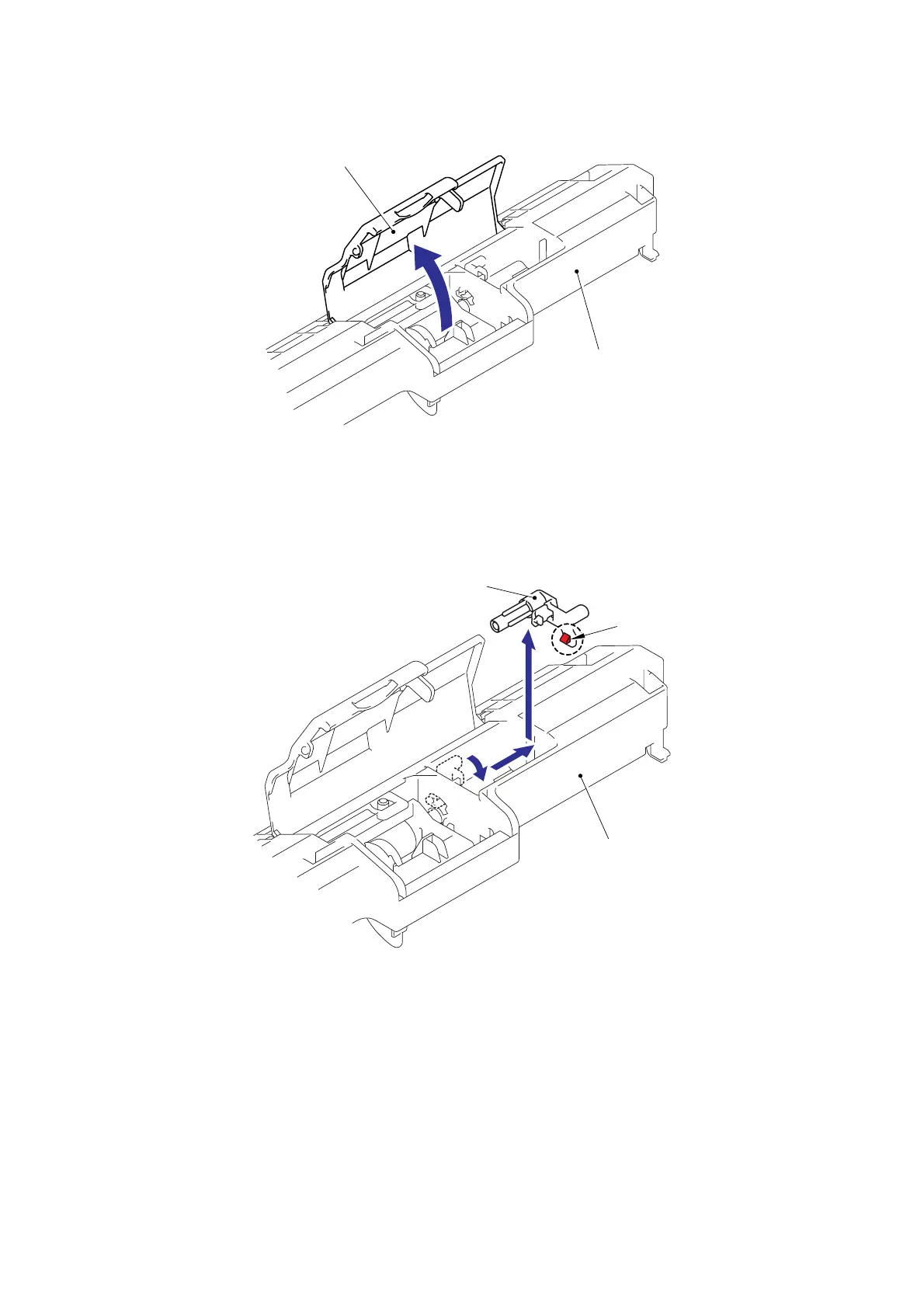

(4) Open the MP feed frame cover.
Fig. 5-104
(5) Release the Hook to remove the Holder bearing MP from the MP feed frame.
Fig. 5-105
5a
5b
Holder bearing MP
Hook
MP feed frame
5c
MP feed frame cover
MP feed frame
