HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-67

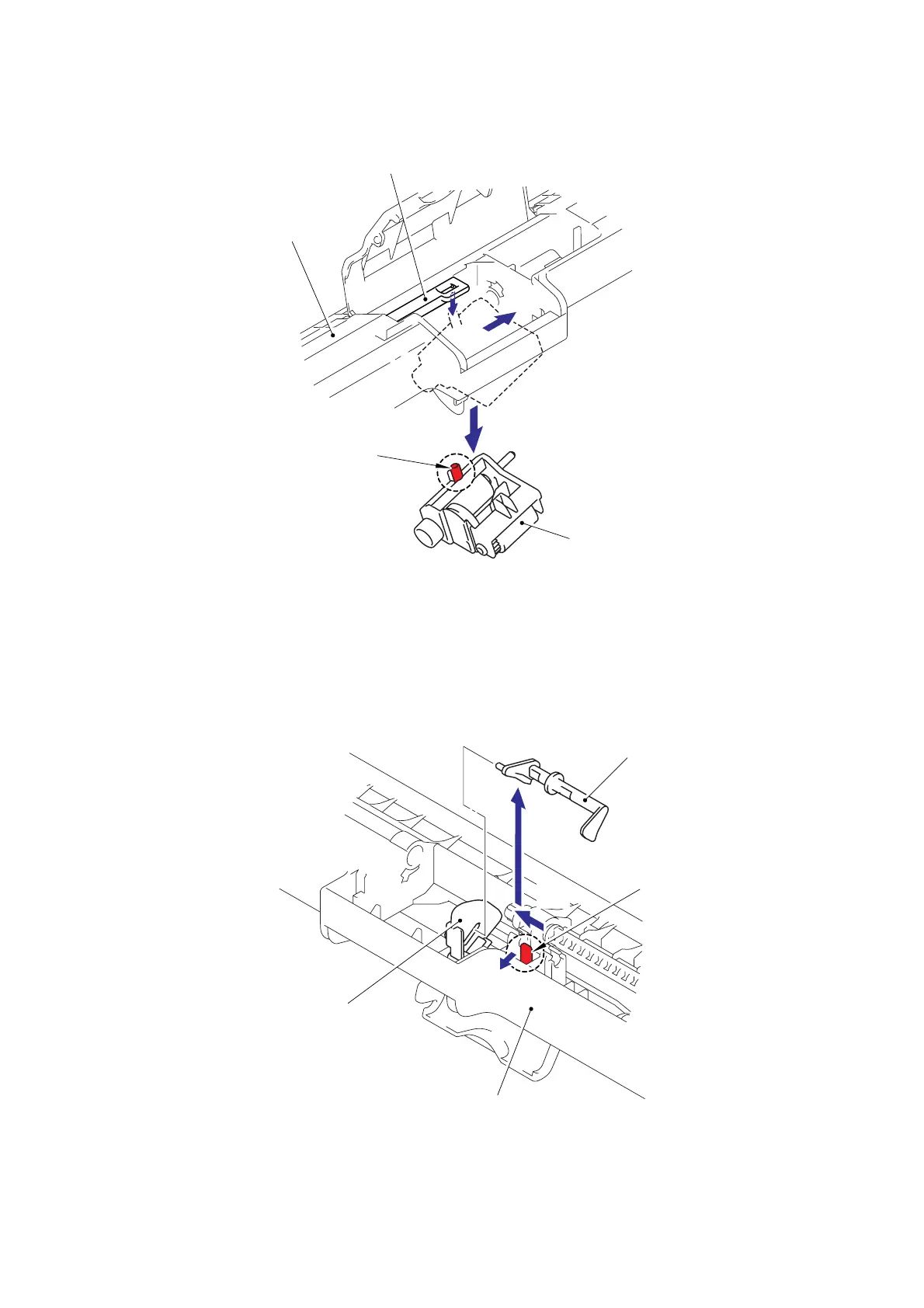

(6) Slide the MP roller holder ASSY to the direction of 6a and pull it up to remove.
Fig. 5-106
(7) Turn the MP feed frame upside down.
(8) Slide the PE actuator MP B to the direction of 8b while pressing the Hook to the direction
of 8a, and pull it up to remove.
Fig. 5-107
MP feed frame
Lift arm MP
MP roller holder ASSY
Hook
6a
6b
MP feed frame
PE actuator MP B
PE actuator MP
Hook
8a
8b
8c
