Brother HL-5280DW Service Manual

CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-68

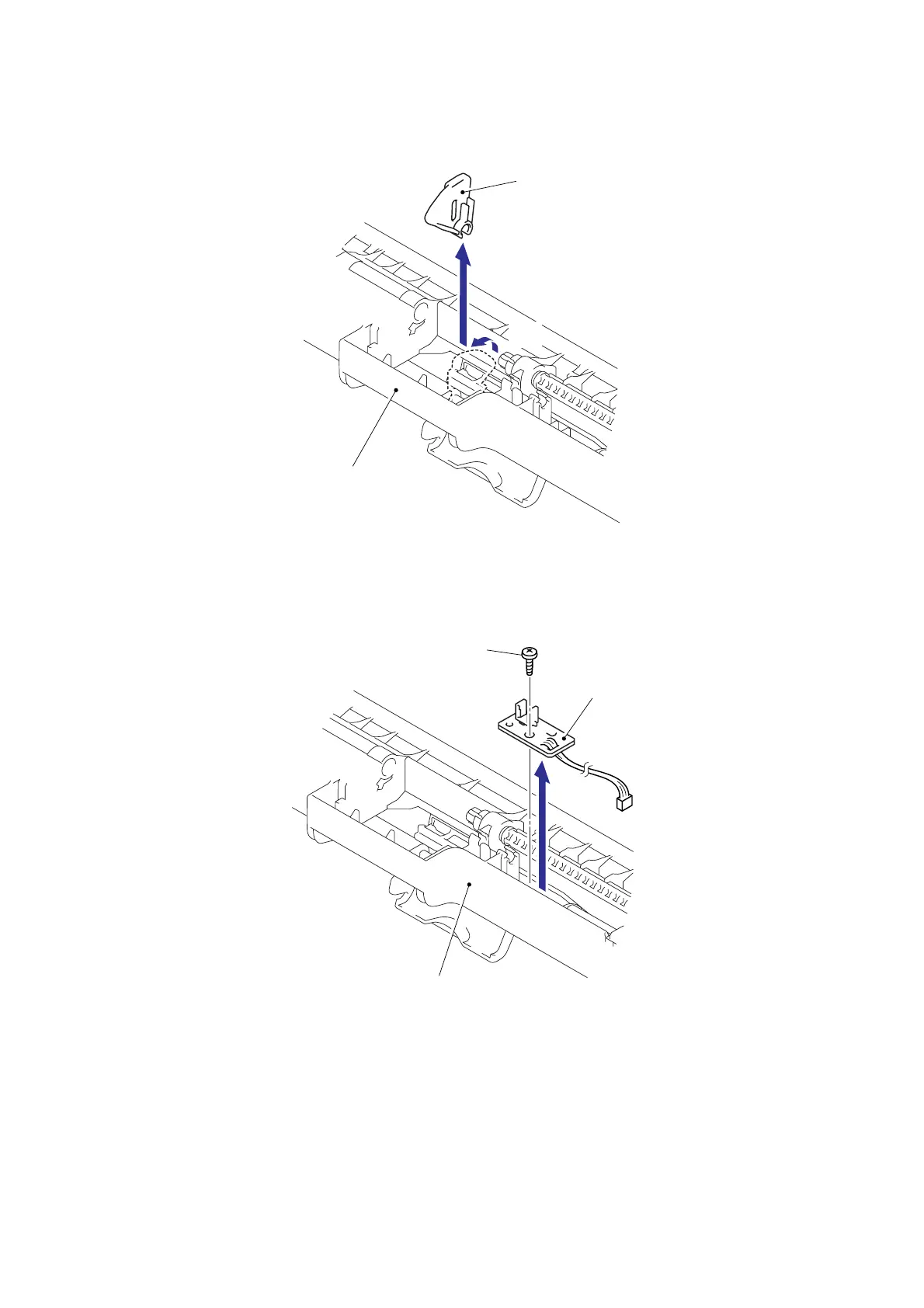

(9) Turn the PE actuator MP to the direction of 9a and pull it up to remove.
Fig. 5-108
(10) Remove the bind B M3x8 Taptite screw, and then remove the MP PE sensor ASSY.
Fig. 5-109
MP feed frame
PE actuator MP
MP feed frame
MP PE sensor ASSY
Taptite, bind B M3x8
9a
9b
