HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-79

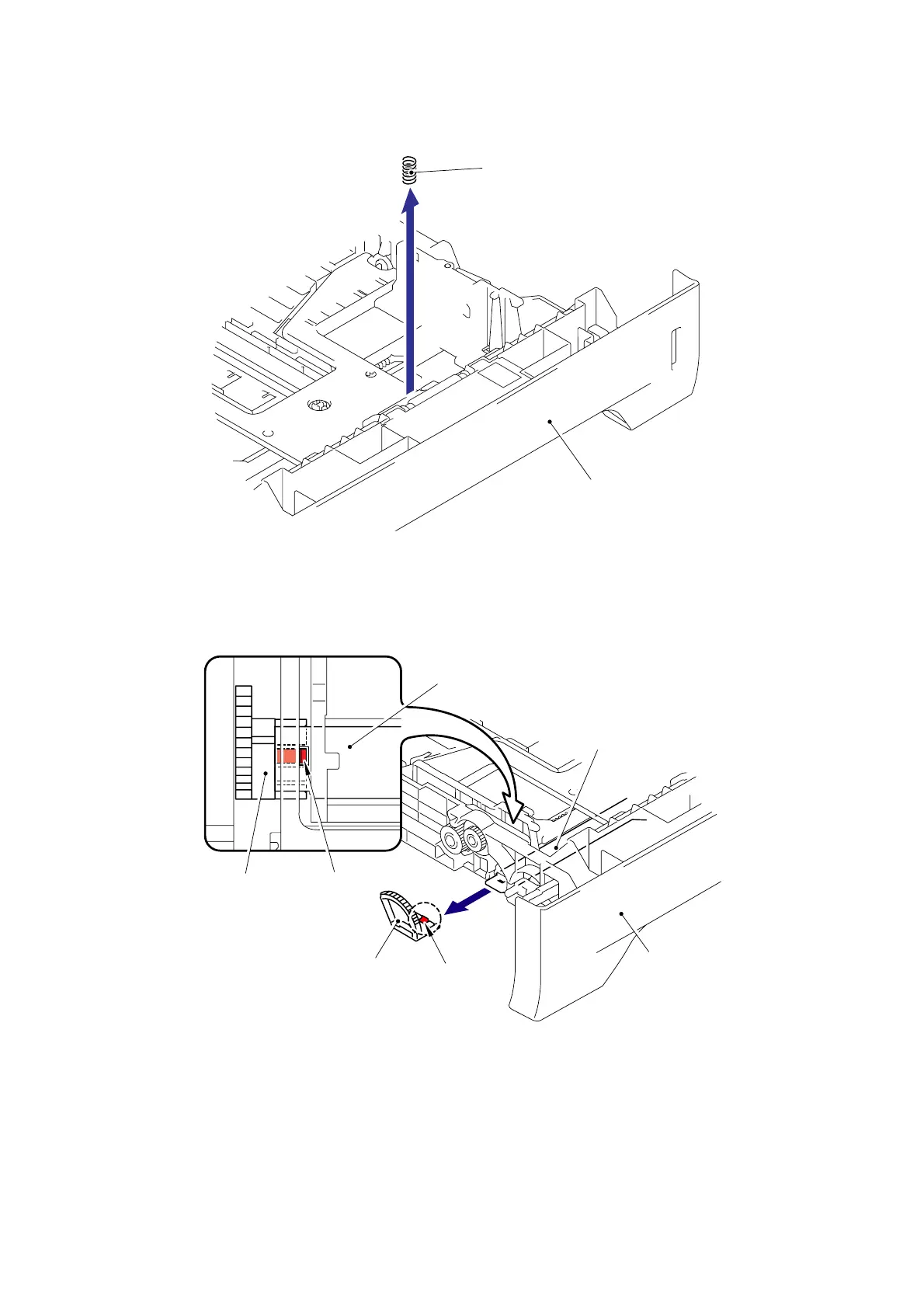

(5) Remove the Separation pad spring.
Fig. 5-129
(6) Remove the Lift gear 46.
Fig. 5-130
Separation pad spring
Paper tray
Paper tray
Lift gear 46
Hook
Hook
Lift gear 46
Plate up plate
Plate up plate
