Brother HL-5280DW Service Manual

CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-96

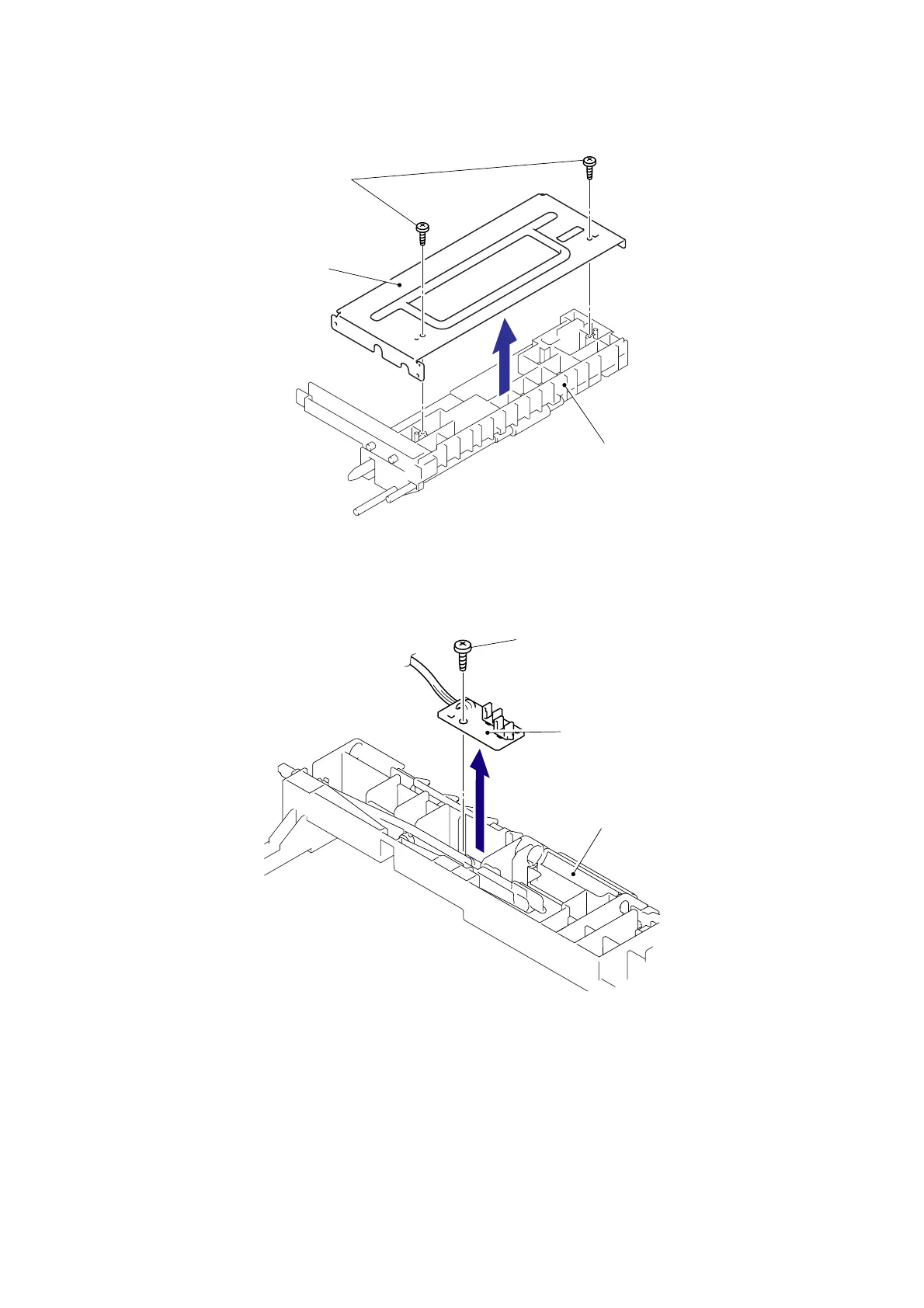

(4) Remove the two cup B M3x12 Taptite screws, and then remove the LT front beam.
Fig. 5-160
(5) Remove the bind B M3x8 Taptite screw, and then remove the LT sensor PCB ASSY.
Fig. 5-161
Taptite, cup B M3x12
LT paper feed frame
LT front beam
Taptite, bind B M3x8
LT paper feed frame
LT sensor PCB ASSY
