APPENDIX
Confidential
A-10
D
B
A
C
E
F
E
D
B
A
C
F
1
1234 6 7 8
234 5 67 8
5

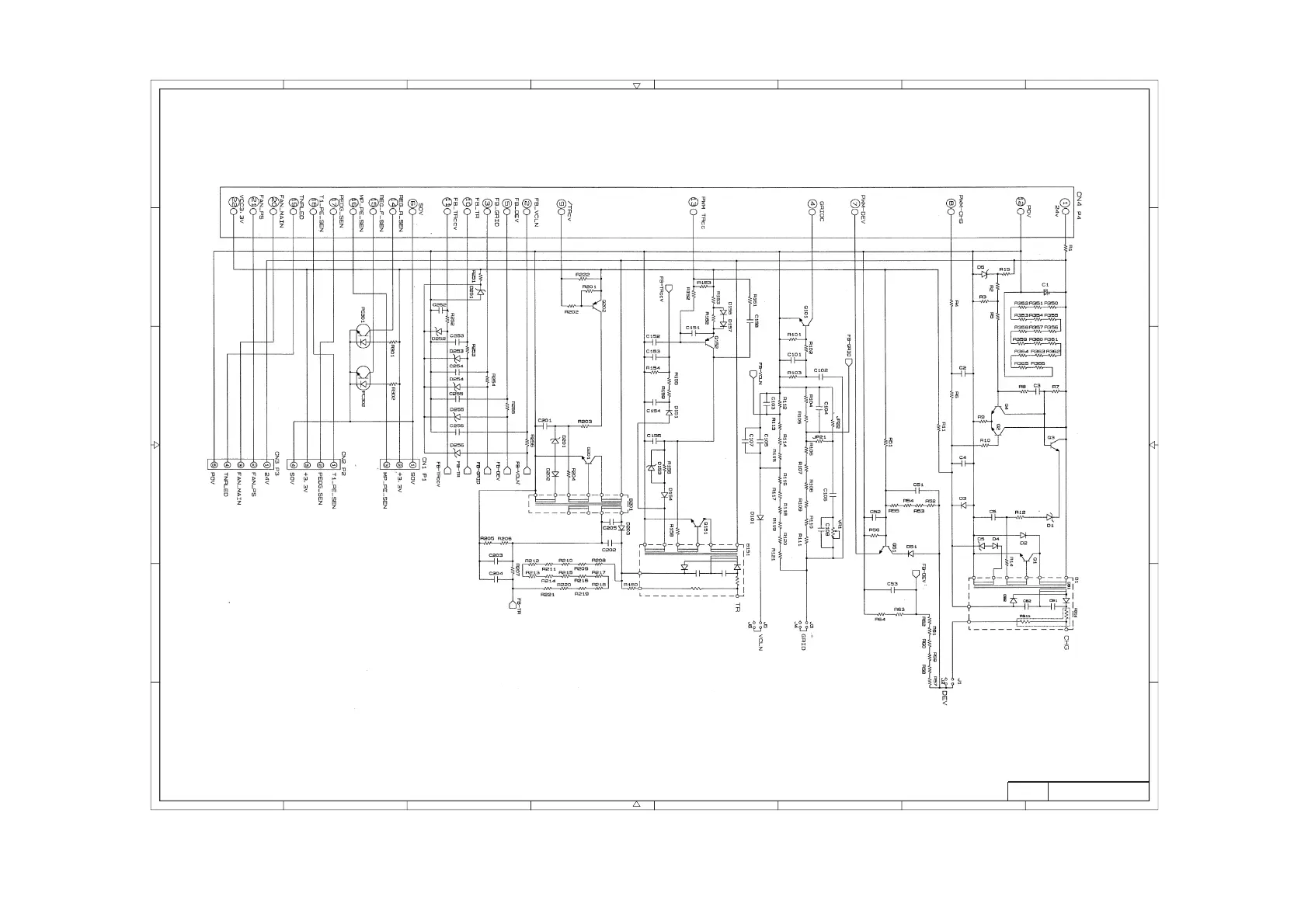

Appendix 3. High-Voltage Power Supply Circuit Diagram
NAME High-Voltage PS Circuit
