Brother HL-5280DW

CHAPTER 3 PERIODIC MAINTENANCE
Confidential
3-20

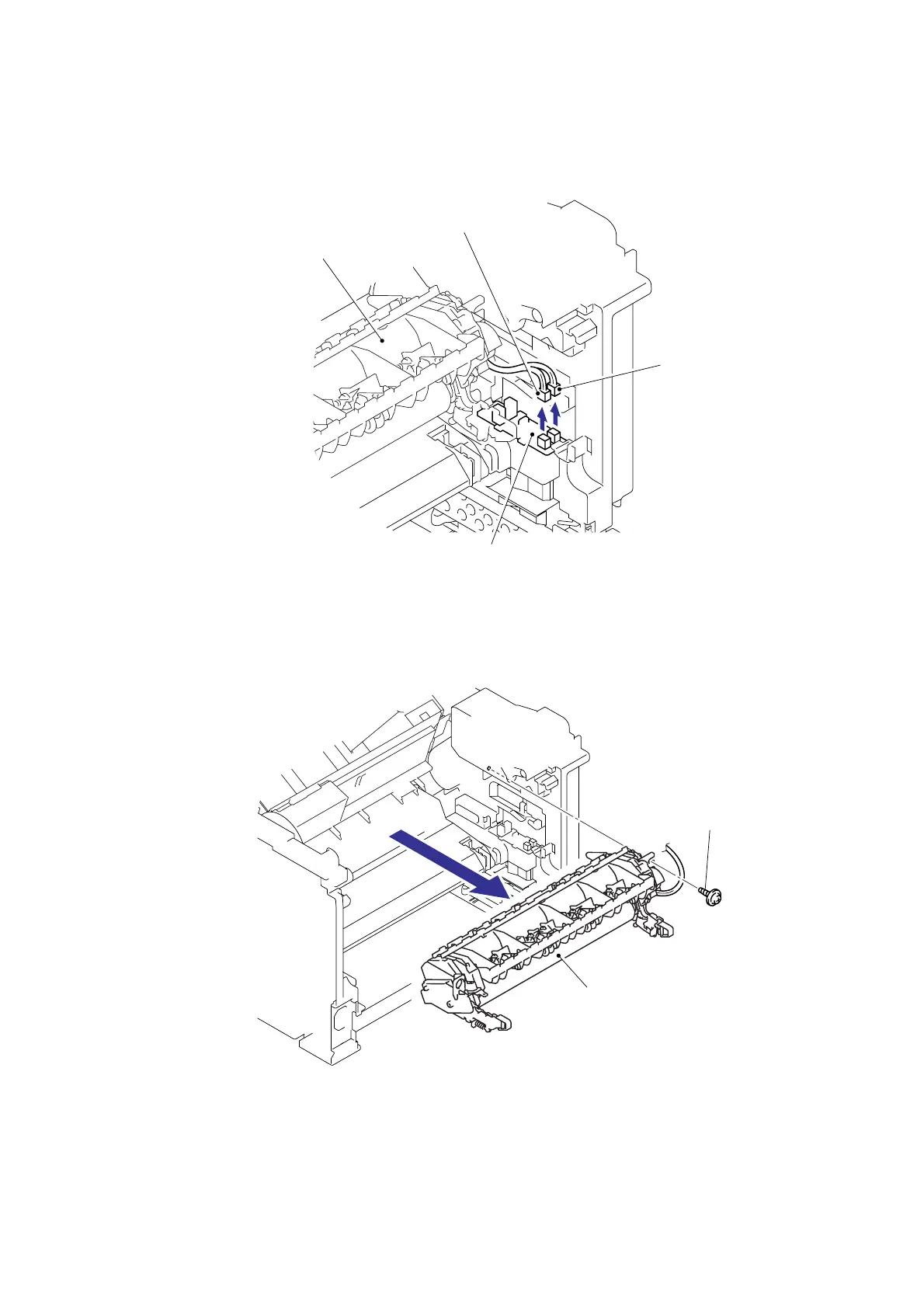

(25) Disconnect the connectors of the Thermistor ASSY M and Thermistor ASSY S from the
Relay rear PCB ASSY, and remove the harnesses of these thermistors.
Fig. 3-33
(26) Remove the cup B M4x16 Taptite screw to remove the Fuser unit.
Fig. 3-34
Thermistor ASSY S
Relay rear PCB ASSY
Thermistor ASSY M
Fuser unit
Fuser unit
Taptite, cup B M4x16
