HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
3-21

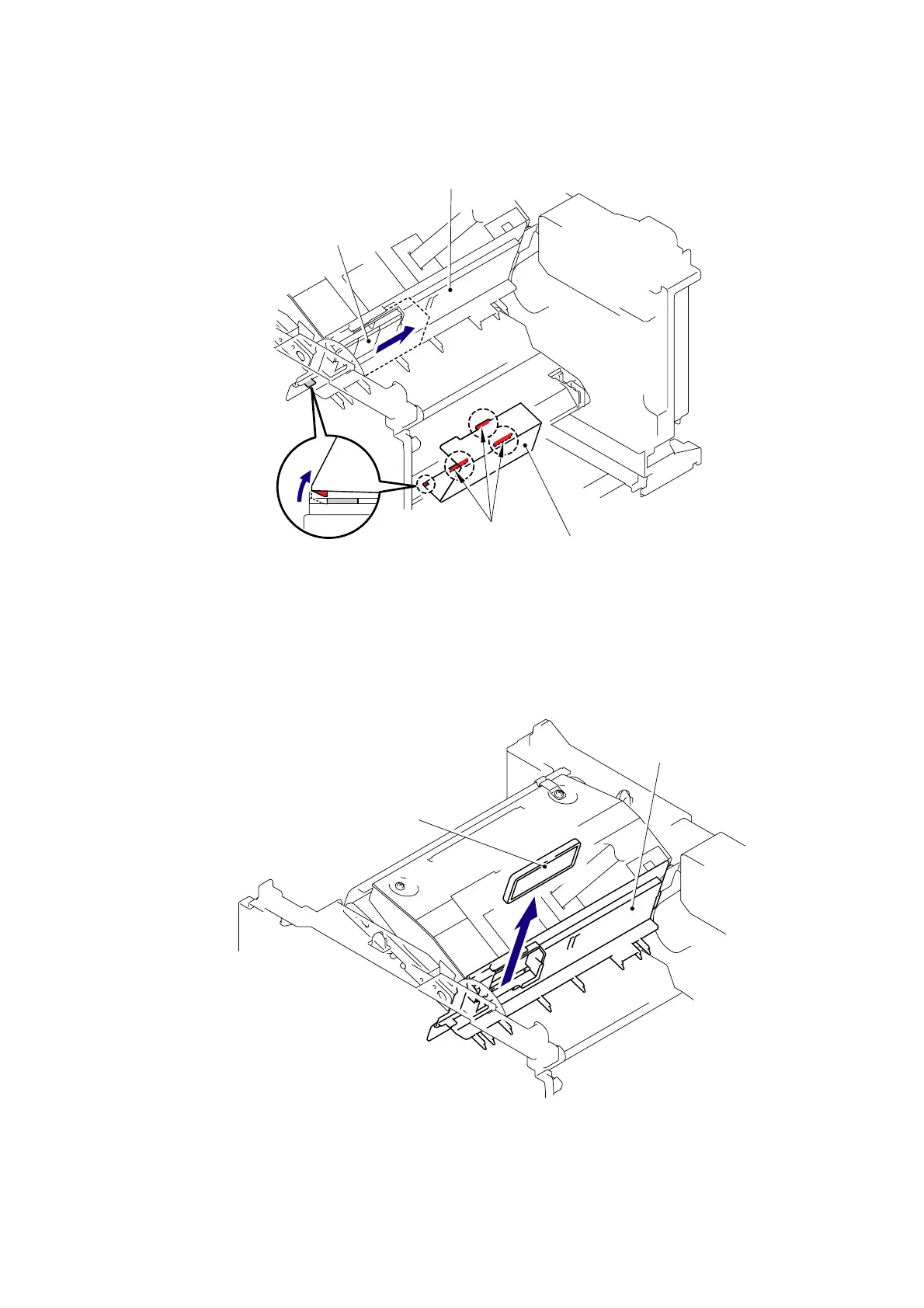

(27) Slide the Sub duct to the direction of 27b while pressing the three Hooks and remove the
Sub duct from the Air duct.
Fig. 3-35
(28) Remove the Filter from the Air duct.
NOTE:
The filter is dirt. Be careful when disassembling or assembling it.
Fig. 3-36
A
ir duct
Sub duct
Hooks
Filter
A
ir duct
Filter
27b
27a
