Brother HL-5280DW

CHAPTER 3 PERIODIC MAINTENANCE
Confidential
3-22

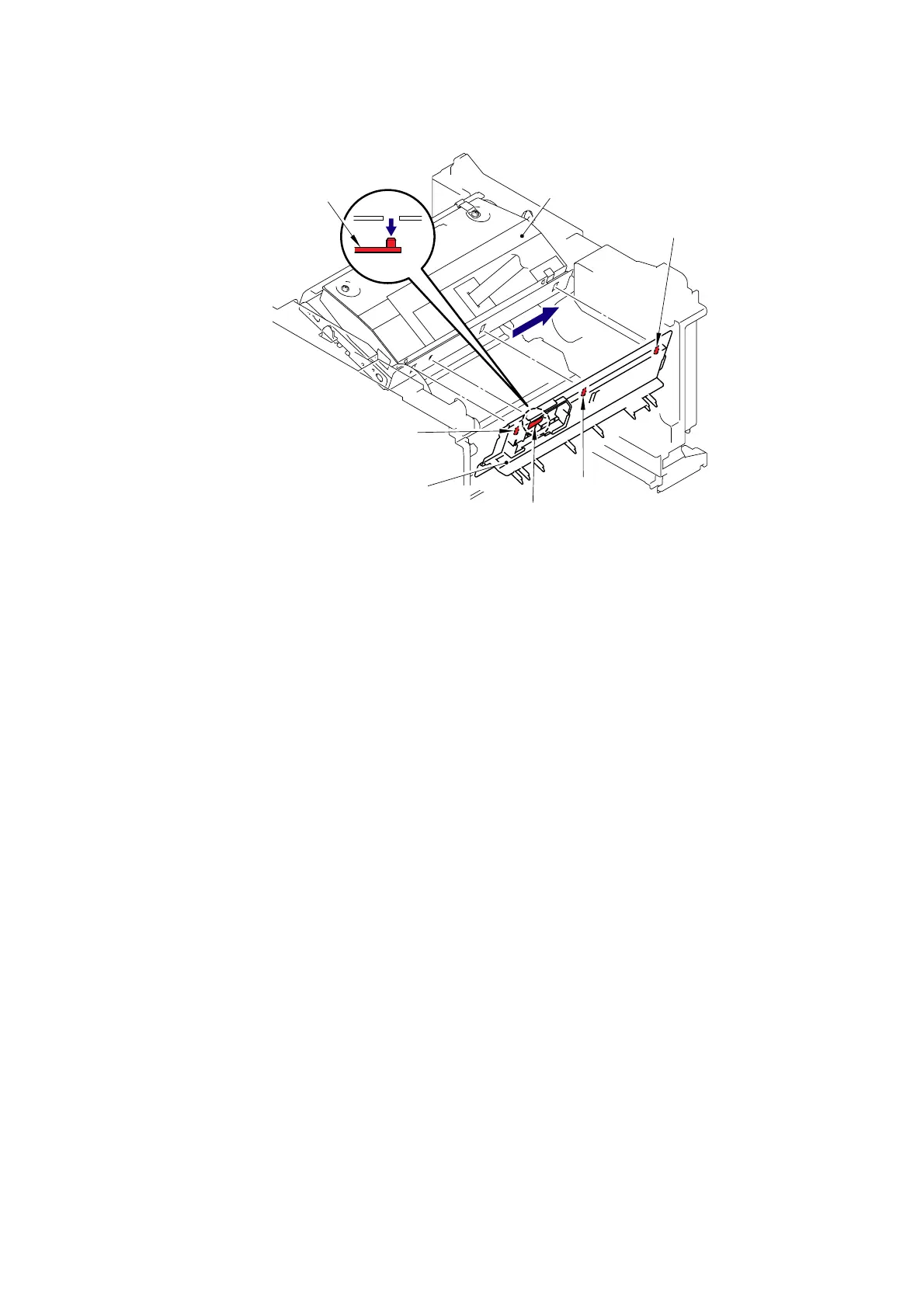

(29) Remove the Pin of the Air duct from the frame. Slide the Air duct to the direction of 29b
and remove the Air duct.
Fig. 3-37
Laser unit
A
ir duct
29a
29b
3
Pin
Pin
Pin
Hook
Hook
