Brother HL-5280DW

CHAPTER 3 PERIODIC MAINTENANCE
Confidential
3-24
< Installing Procedure >

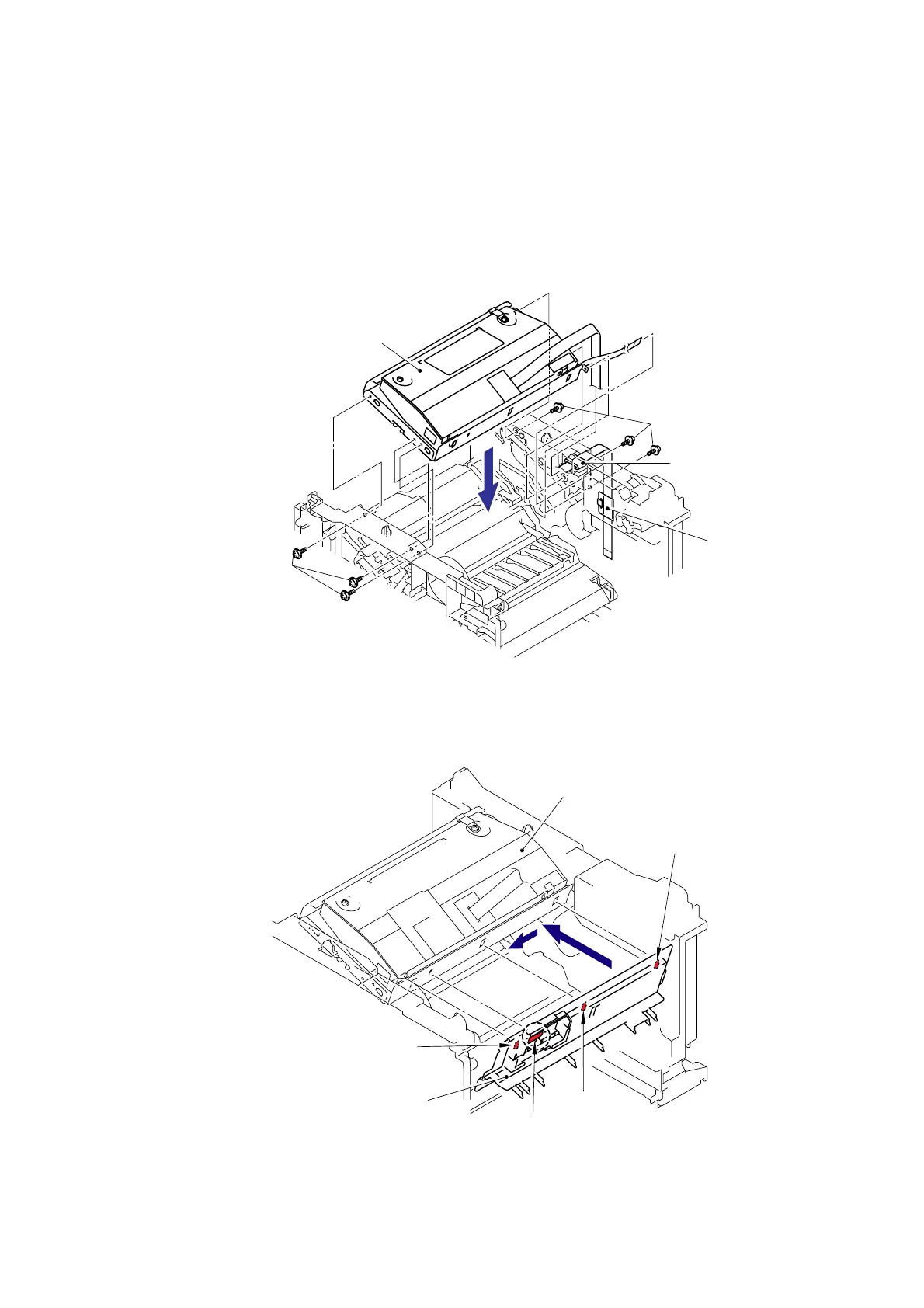

(1) Secure the Laser unit with the six cup S M3x6 Taptite screws.
(2) Put the flat cable through the Core and Protective film.
(3) Install the flat cable. (Refer to “4. HARNESS ROUTING” in Chapter 5.)
NOTE:
When connecting flat cable(s), do not insert them at an angle. After insertion, check that
the cables are not at an angle.
Fig. 3-39
(4) Install the Air duct into the Laser unit.
Fig. 3-40
Laser unit
Taptite, cup S M3x6
Taptite, cup S M3x6
Laser unit
A
ir duct
4a
4b
Pin
Pin
Hook
Hook
Core
Protective film
