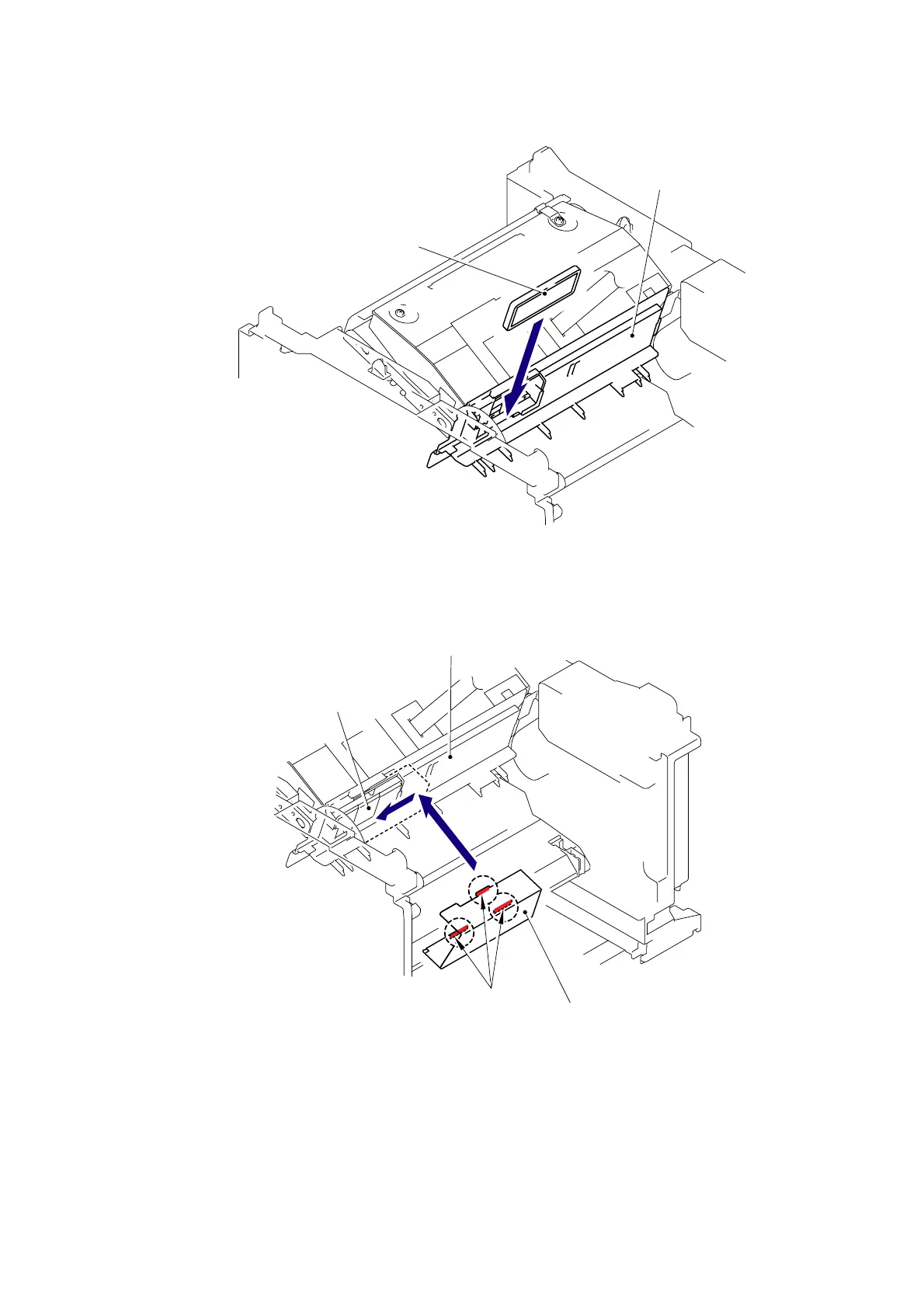

(5) Install the Filter into the Air duct.
Fig. 3-41
(6) Install the Sub duct into the Air duct.
Fig. 3-42
A
ir duct
Filter
A
ir duct
Sub duct
Hooks
Filter
6a
6b
