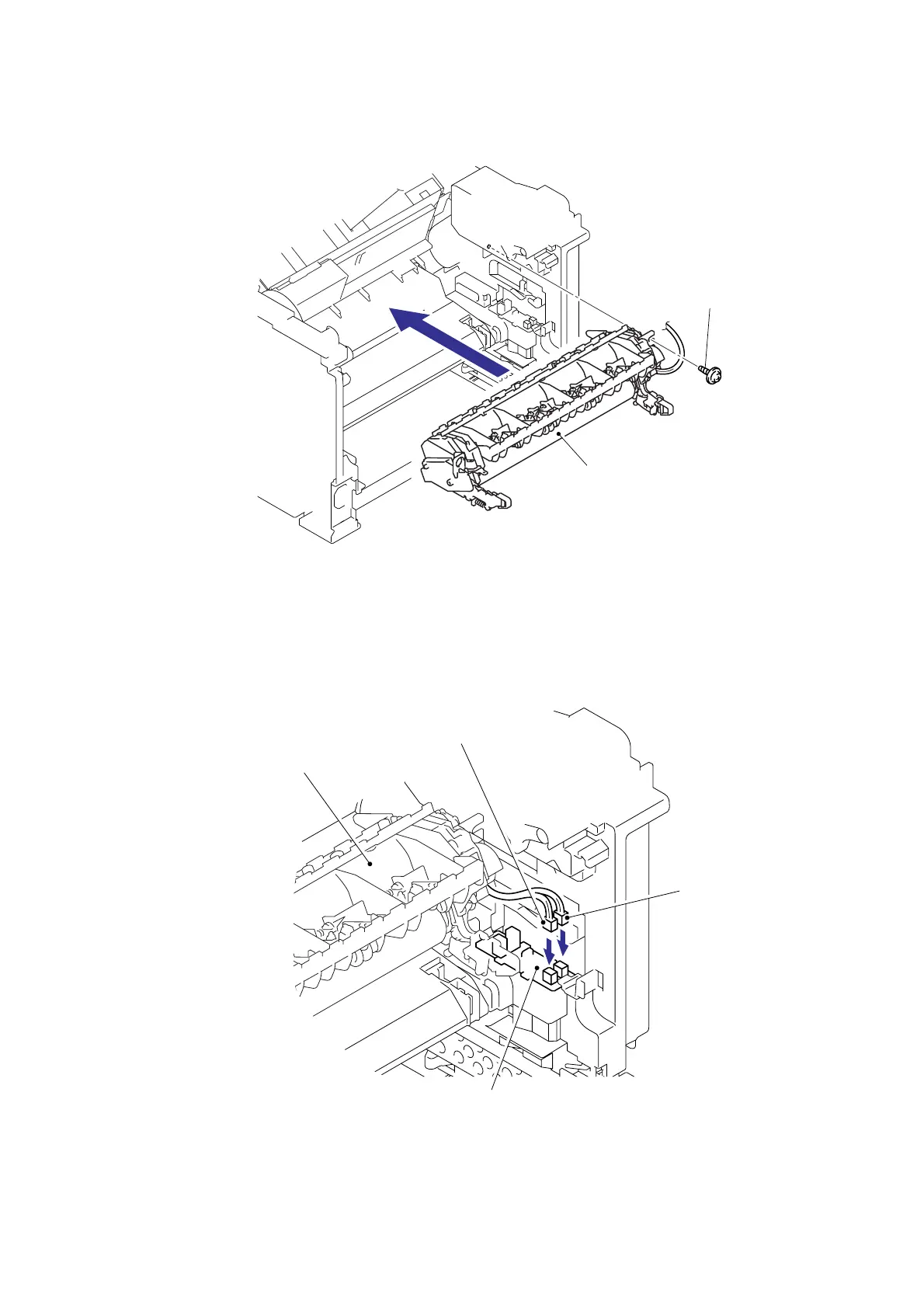

(7) Secure the Fuser unit with the bind B M4x16 Taptite screw.
Fig. 3-43
(8) Connect the connectors of the Thermistor ASSY M and Thermistor ASSY S onto the relay
rear PCB ASSY.
Fig. 3-44
Fuser unit
Taptite, bind B M4x16
Thermistor ASSY S
Relay rear PCB ASSY
Thermistor ASSY M
Fuser unit
