Brother HL-5280DW

CHAPTER 3 PERIODIC MAINTENANCE
Confidential
3-28

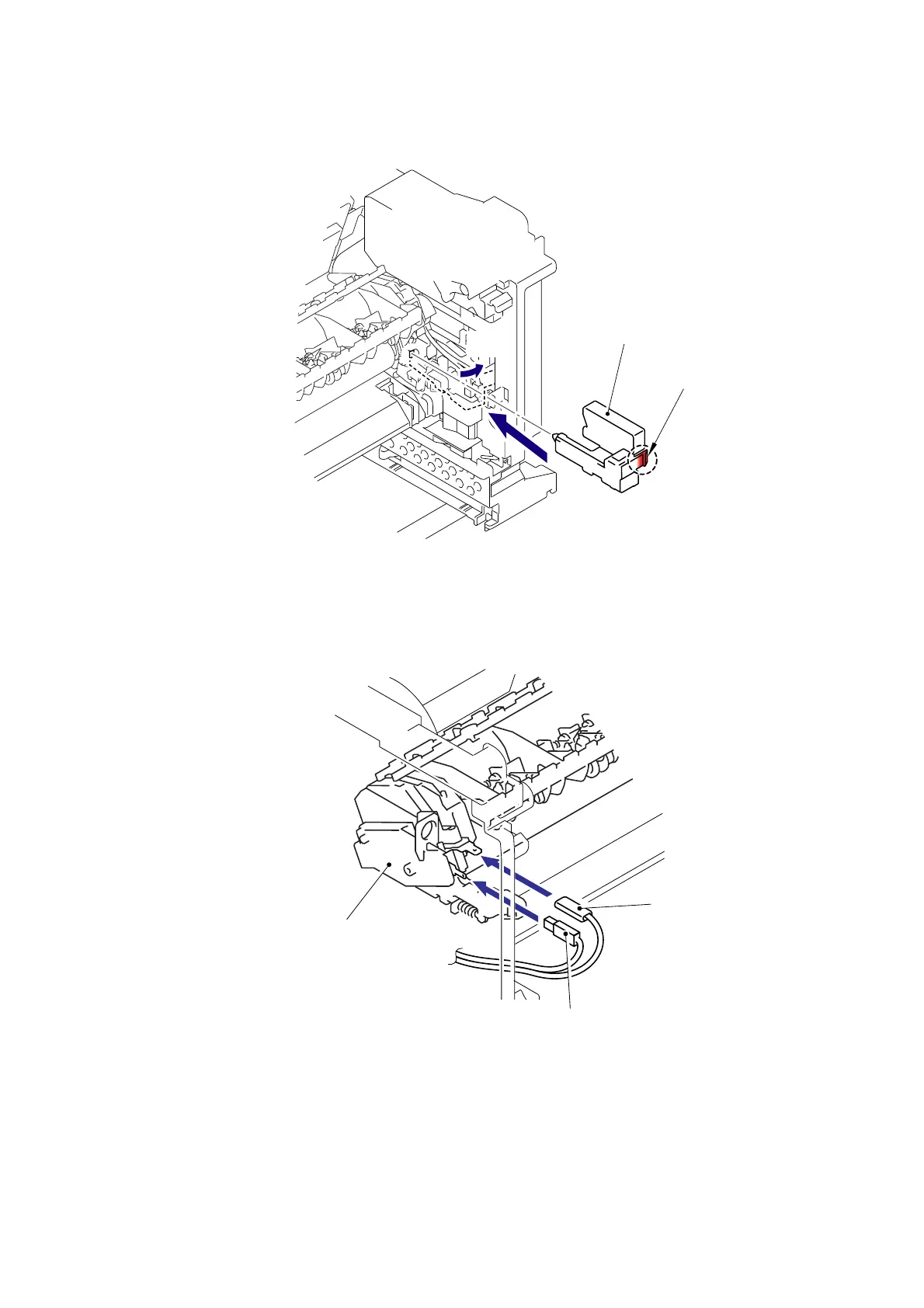

(9) Install the FU harness cover 2.
Fig. 3-45
(10) Install the Heater terminal L and Heater terminal S.
Fig. 3-46
FU harness cover 2
Hook
Fuser unit
Heater terminal L
Heater terminal S
9a
9b
