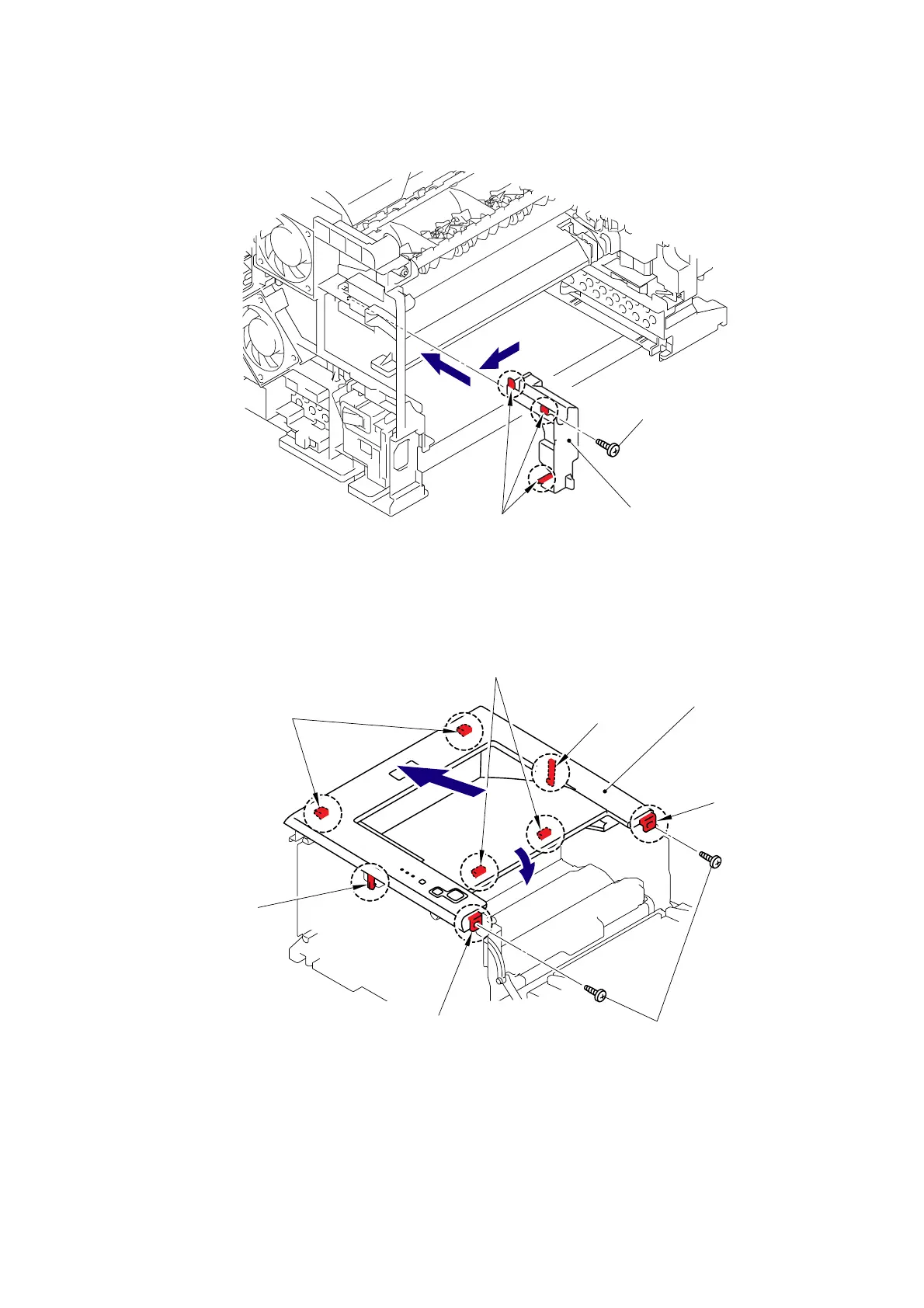

(11) Secure the FU harness cover 1 with the bind B M4x16 Taptite screw.
Fig. 3-47
(12) Secure the Top cover printed ASSY with the two bind B M4x12 Taptite screws.
Fig. 3-48
Taptite, bind B M4x16
FU harness cover 1
Hooks
Hooks
Hooks
Hooks
Hook
Taptite, bind B M4x12
Hook
Hook
Top cover printed ASSY
11a
11b
12a
12b
