CHAPTER 3 PERIODIC MAINTENANCE
Confidential
3-30

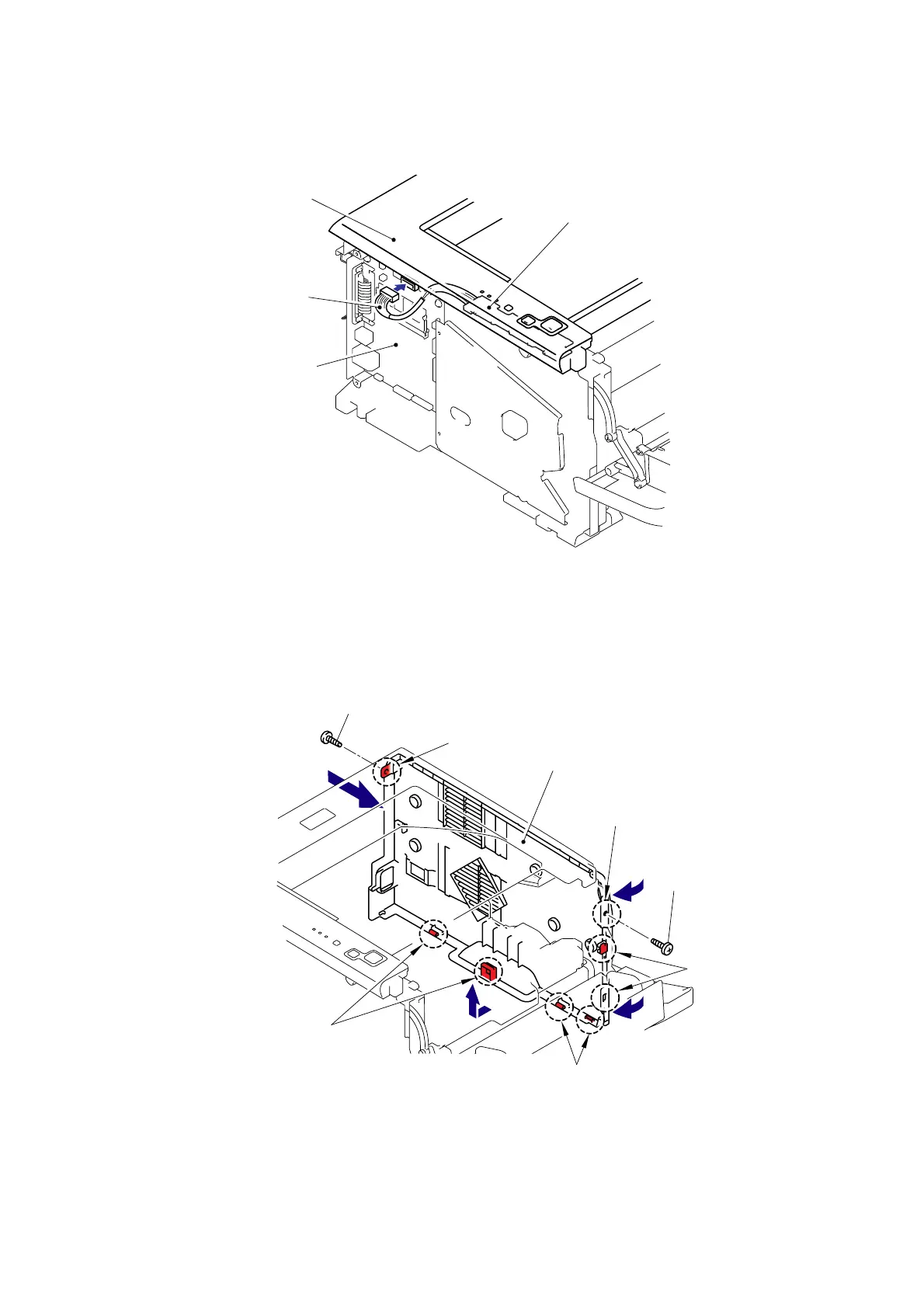

(13) Connect the Connector of the Panel PCB.
Fig. 3-49
(14) Catch the Hooks in the order of the arrows and secure the Side cover R with the two bind
B M4x12 Taptite screws.
Fig. 3-50
Taptite, bind B M4x12
Side cover R
Taptite, bind B M4x12
Hook
Hooks
Hooks
Hooks
Hook
14a
14b
14d
14c
Top cover printed ASSY
Main PCB
Connector
Panel PCB
