HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
3-31

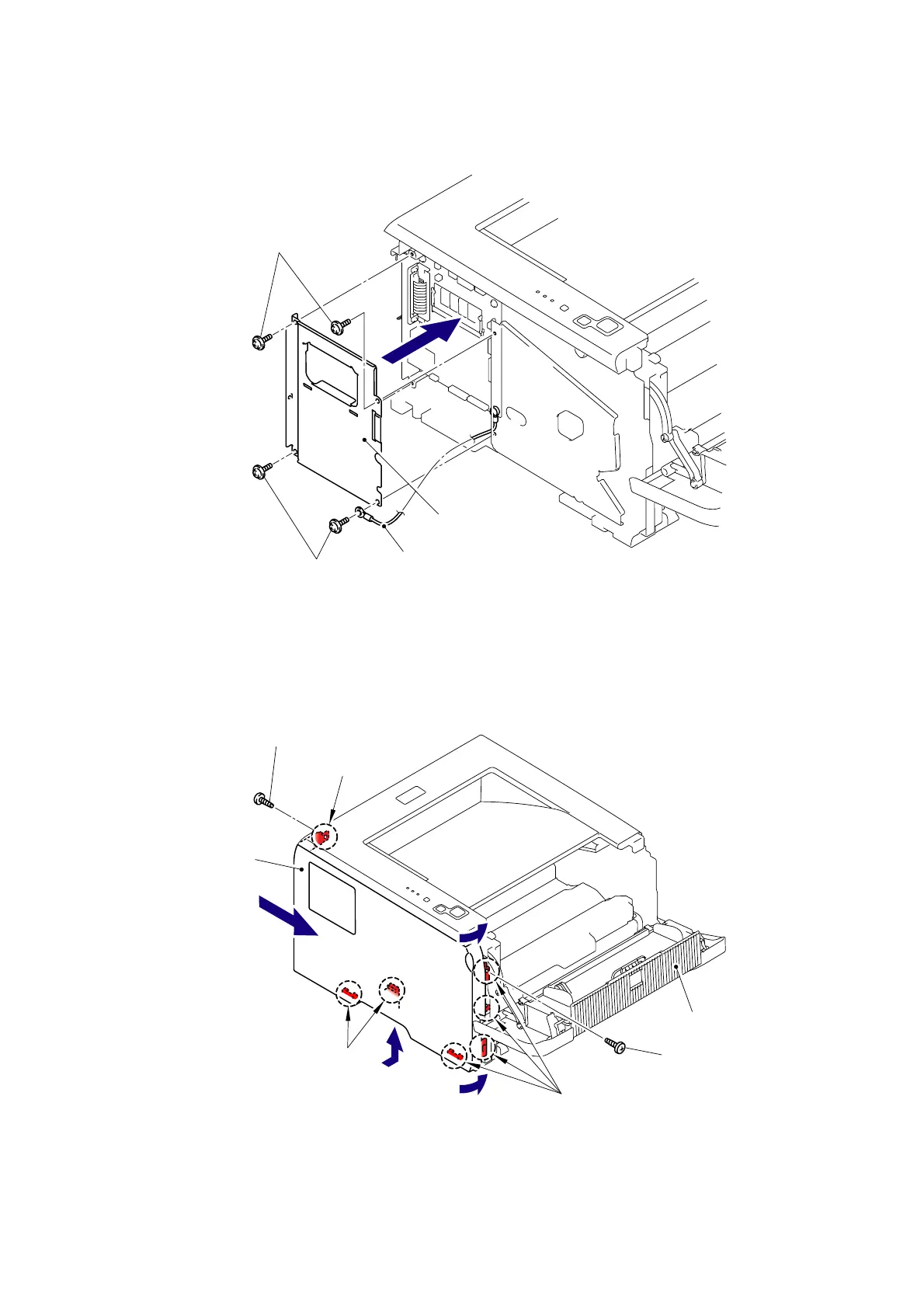

(15) Secure the Shield cover and FG harness with the four cup S M3x6 SR Taptite screws.
Fig. 3-51
(16) Catch the Hooks in the order of the arrows and secure the Side cover L with the two bind
B M4x12 Taptite screws.
Fig. 3-52
Taptite, bind B M4x12
Taptite, bind B M4x12
Side cover L
Hooks
Hooks
Hook
16a
16b
16c
16d
Front cover
Shield cover
Taptite, cup S M3x6 SR
Taptite, cup S M3x6 SR
FG harness
