CHAPTER 3 PERIODIC MAINTENANCE
Confidential
3-32

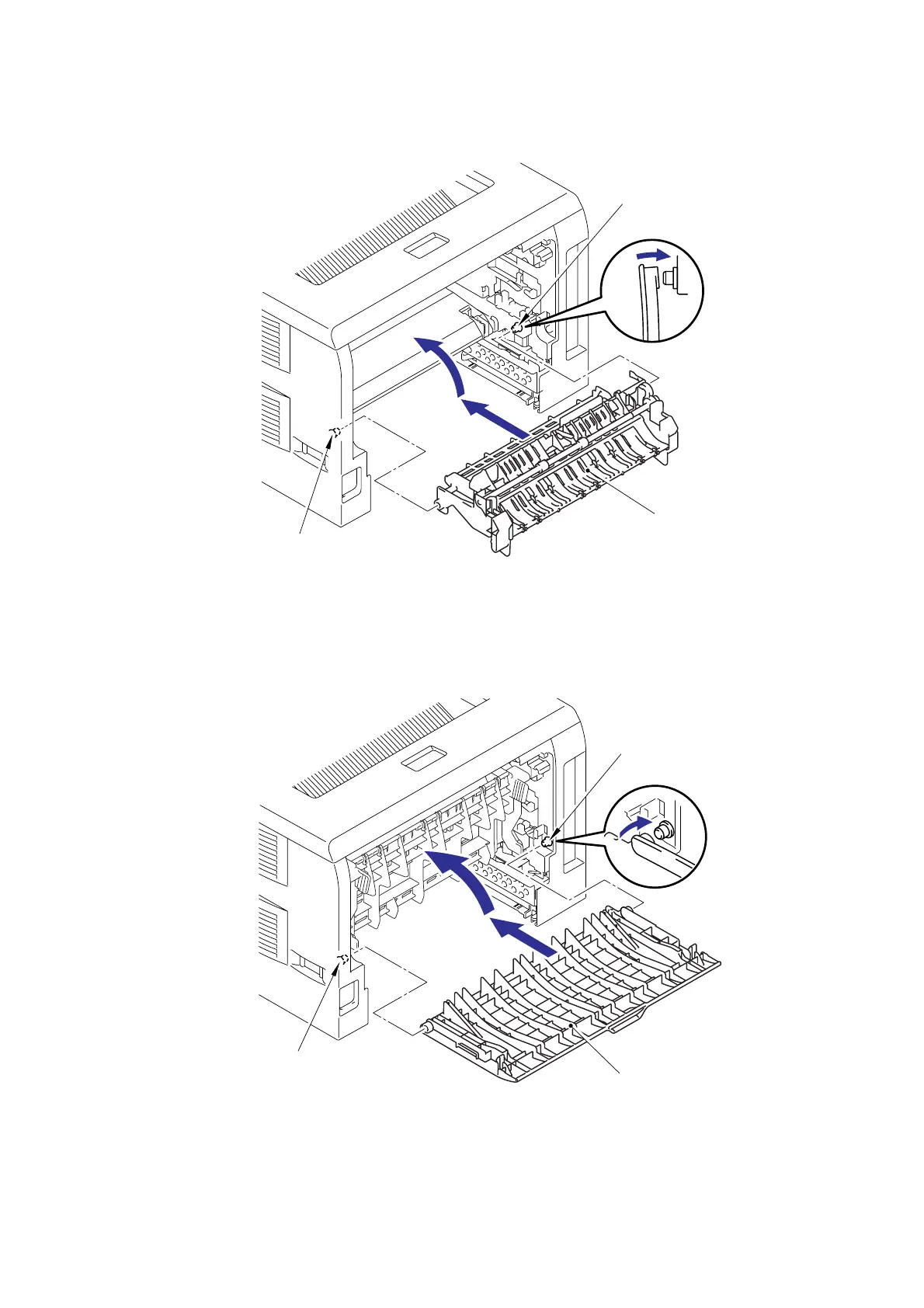

(17) Catch the Arm of the Outer chute ASSY onto the Pin of the machine body and install the
Outer chute ASSY.
Fig. 3-53
(18) Catch the Arm of the Back cover onto the Pin of the machine body and install the Back
cover.
Fig. 3-54
Outer chute ASSY
Back cover
17a
17c
Pin
Pin
17b
Pin
Pin
18a
18b
18c
