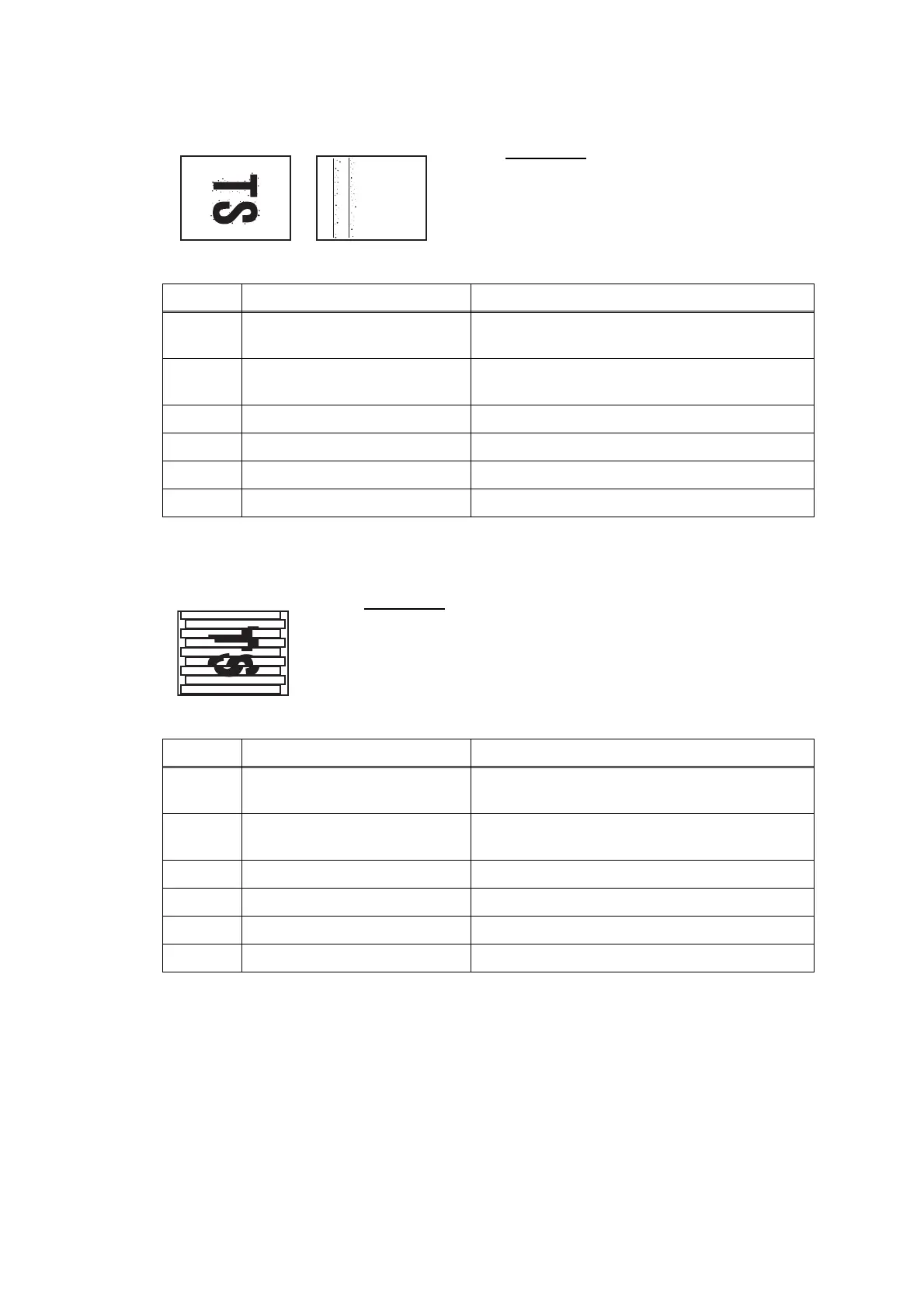

Ink splash
Print edges not aligned
User Check
- Replace the ink cartridge.
Step Cause Solution
1 Maintenance unit stained Clean the maintenance unit (refer to Section 4.3.2 in
this Chapter.)
2 Wrong head property value Input the head property value (refer to Chapter 5,
Section 1.3.25.)
3 Carriage PCB defective Replace the carriage PCB ASSY.
4 Maintenance unit defective Replace the maintenance unit.
5 Head defective Replace the head/carriage unit.
6 Main PCB defective Replace the main PCB ASSY.
User Check
- Check whether the recording paper being used is within the
specification.
- Perform the printing position adjustment.
Step Cause Solution
1 Vertical print lines not aligned Adjust vertical print line alignment (refer to Chapter
5, Section 1.3.23.)
2 Head inclination is not correctly
adjusted.
Adjust the head inclination (refer to Chapter 4,
Section 2.4.)
3 CR encoder strip stained Clean the CR encoder strip.
4 CR encoder strip defective Replace CR encoder strip
5 Head defective Replace the head/carriage unit.
6 Main PCB defective Replace the main PCB ASSY.
To Next Page
