9.31 Flushing Box

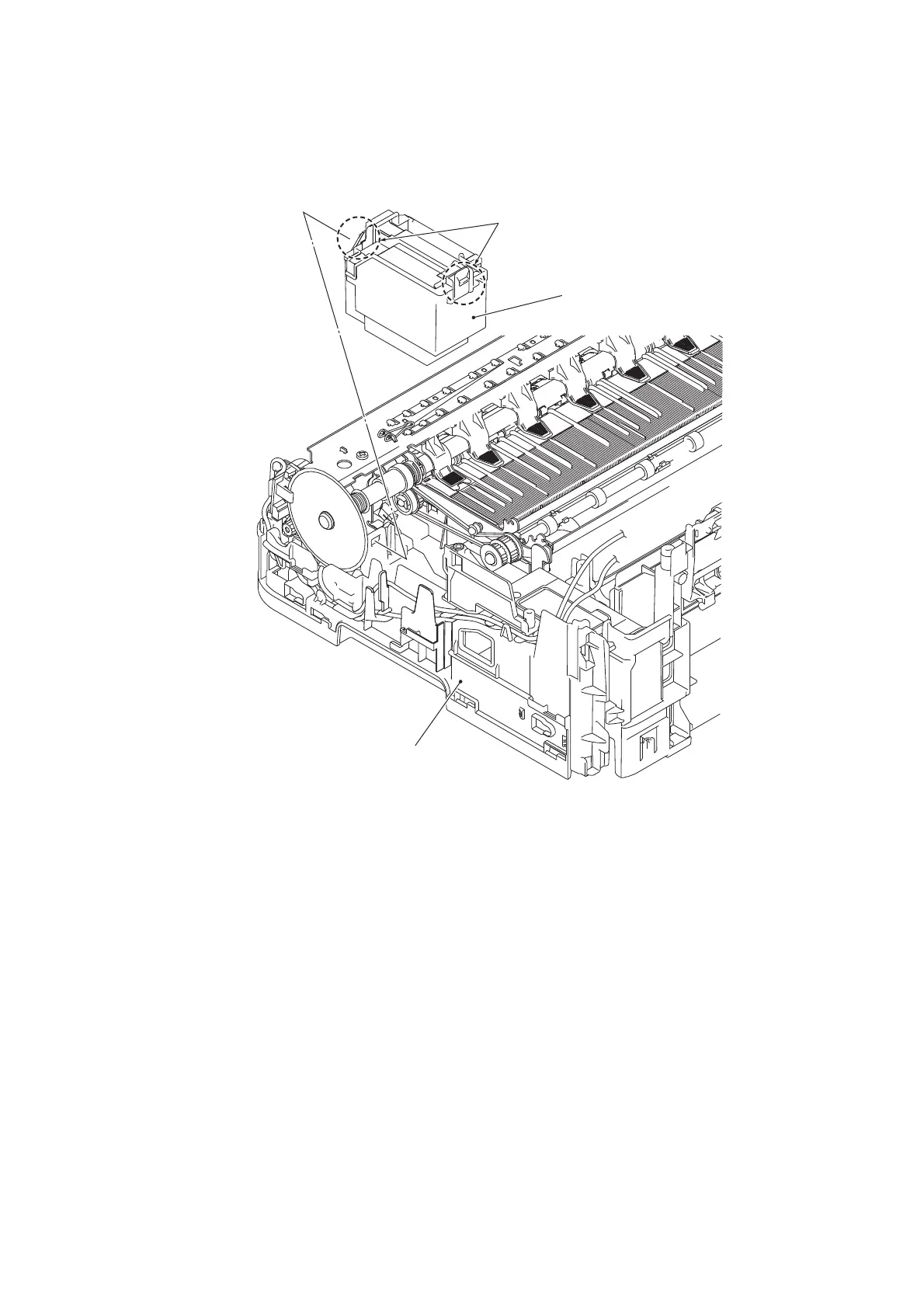

(1) Release the two hooks, lift up the front end of the flushing box, and remove the flushing
box.
Assembling Note: If you replace the flushing box (without replacing the main PCB), reset the
flushing count, using the procedure given in Chapter 4, Section 1.14 "Reset purge and flushing
counts."
It is also recommended that the ink absorber box be replaced and the purge count be reset as
necessary since the purge count may approach the upper limit.
(Rear)
(Front)
Lower cover
Hooks
Flushing box
(3_093_E)
