3-108
Confidential

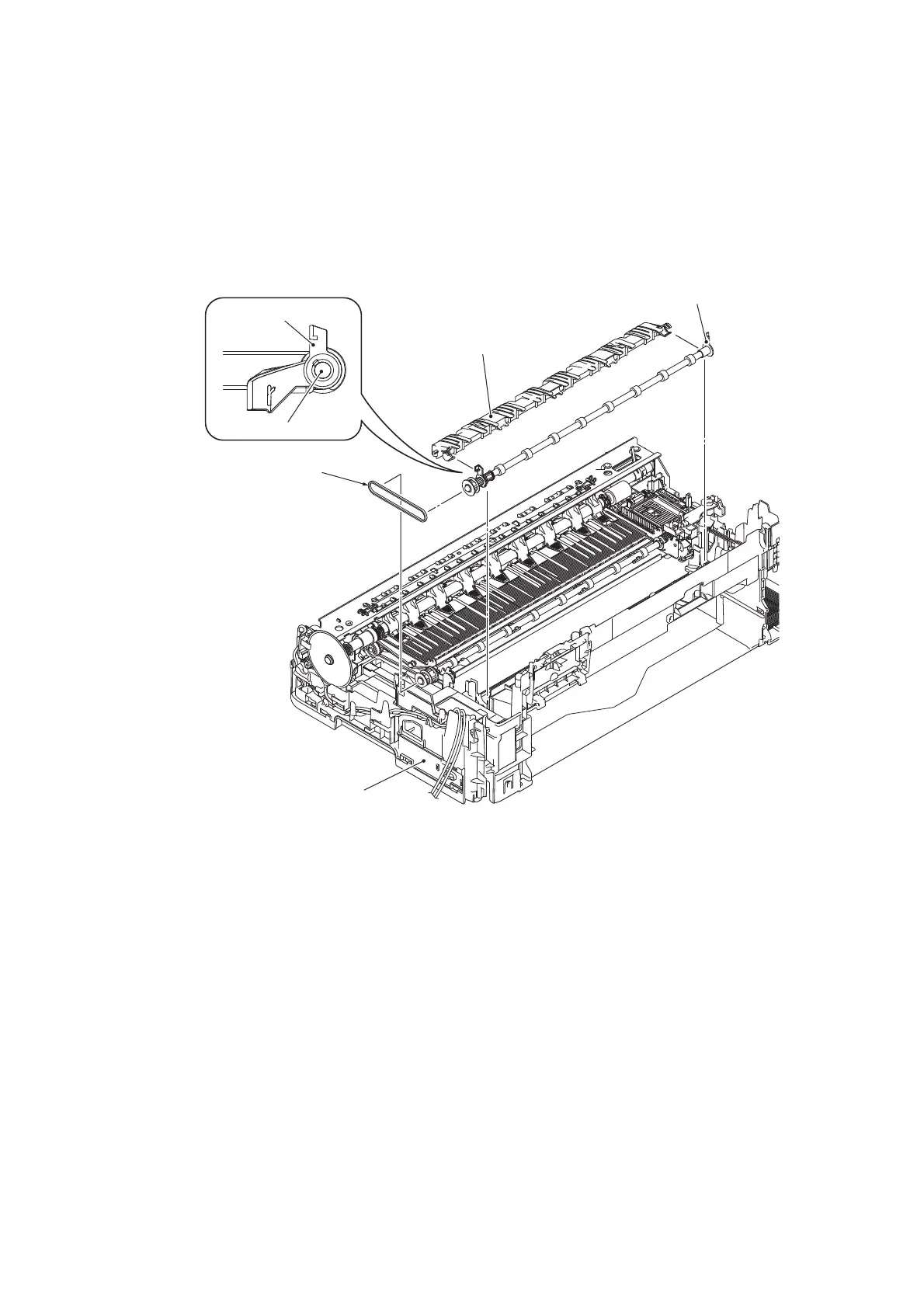

(3) Remove the switchback roller belt.
(4) Remove the switchback roller.
Assembling Notes:
• Do not touch the platen foam by hand.
• Mount the switchback roller with its bushing lever facing up.
(5) Remove the switchback outer paper guide from the switchback roller.
(Rear)
(Front)
Switchback roller
Switchback roller
Bushing lever
Switchback outer
paper guide
Switchback roller
belt
Lower cover
(3_092_1_E)
