3-77
Confidential

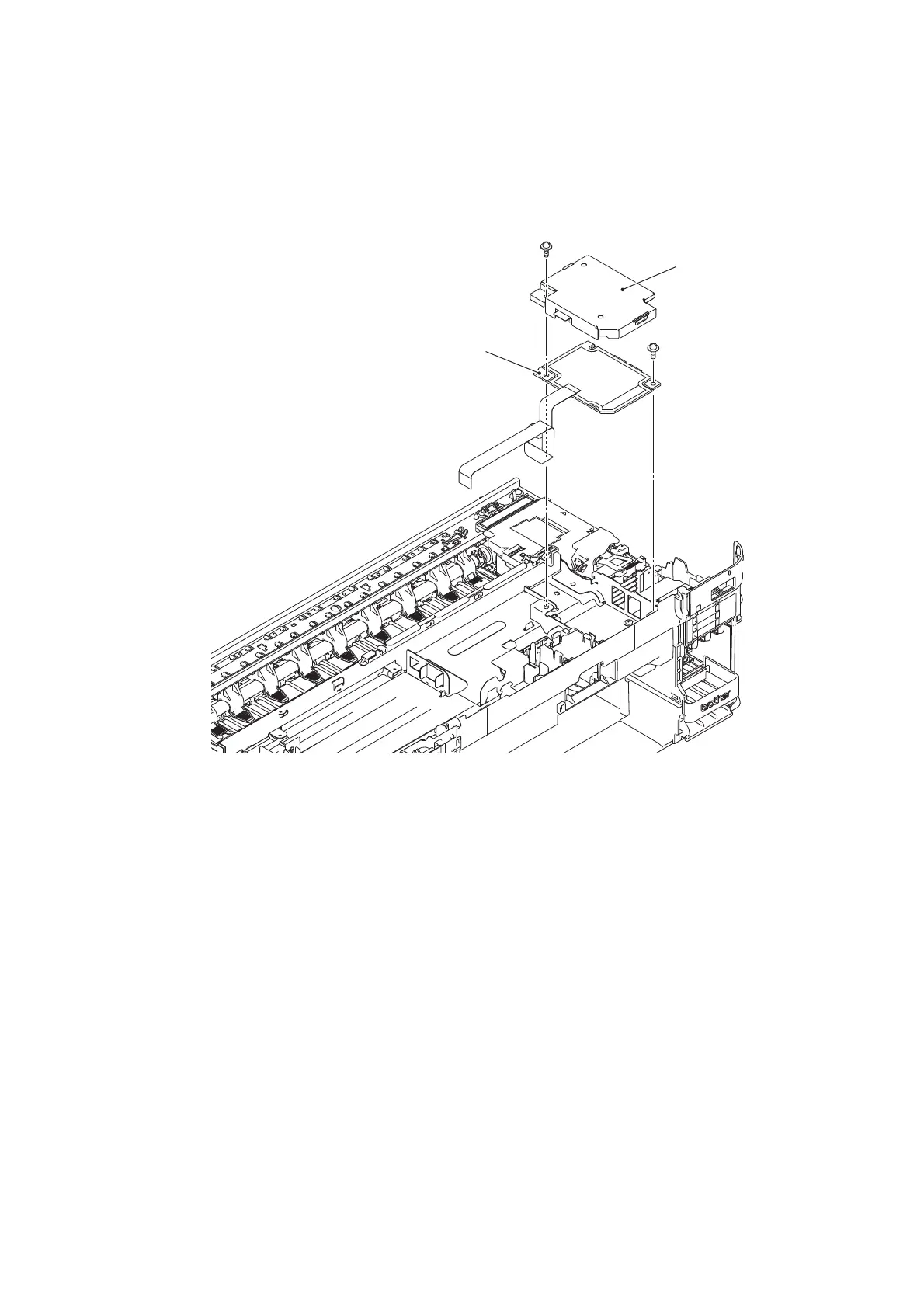

9.19 MJ PCB ASSY
(1) Release the wiring of the MJ PCB flat cable.
(2) Remove the screw (TAPTITE CUP S M3x6) and take off the MJ shield.
(3) Remove the screw (TAPTITE CUP S M3x6) and take off the MJ PCB ASSY.
Assembling Note: Make sure that two insulation films are sandwiched between the MJ shield
and the MJ PCB.
TAPTITE CUP S M3x6
(Rear)
MJ PCB ASSY
MJ shield
(3_057_ E)
