1.3.7 Operational Check of LCD (Maintenance mode 12)
< Function >
This function checks whether the LCD on the control panel works normally.
< Operating Procedure >
(1) Press the 1 and 2 keys in this order in the initial stage of the maintenance mode.
(2) Each time you press the # or key, the LCD cycles through the screens as shown below
Pressing the * or key goes back to the immediately preceding screen.
When Screen 13 displays, pressing the # or key switches to Screen 1.
(3) Press the X key in any process of the screen cycle to return the machine to the initial stage
of the maintenance mode.

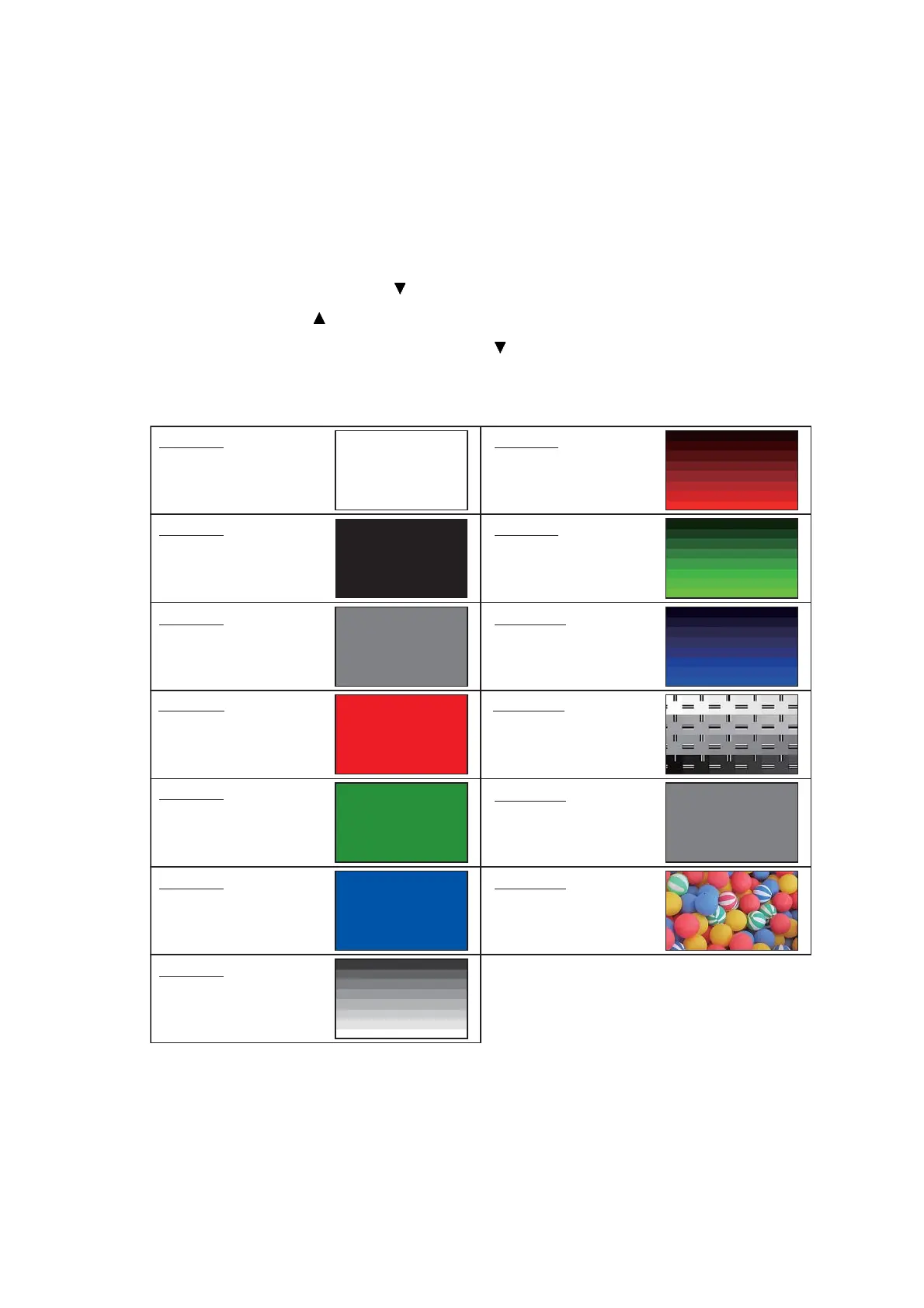

Screen 1
Completely blank
Screen 2
All black
Screen 3
All gray
Screen 4
All red
Screen 5
All green
Screen 6
All blue
Screen 7
White stepwise
Screen 8
Red stepwise
Screen 9
Green stepwise
Screen 10
Blue stepwise
Screen 11
Stroke detection
Screen 12
All gray
Screen 13
Image data
