3-68
Confidential

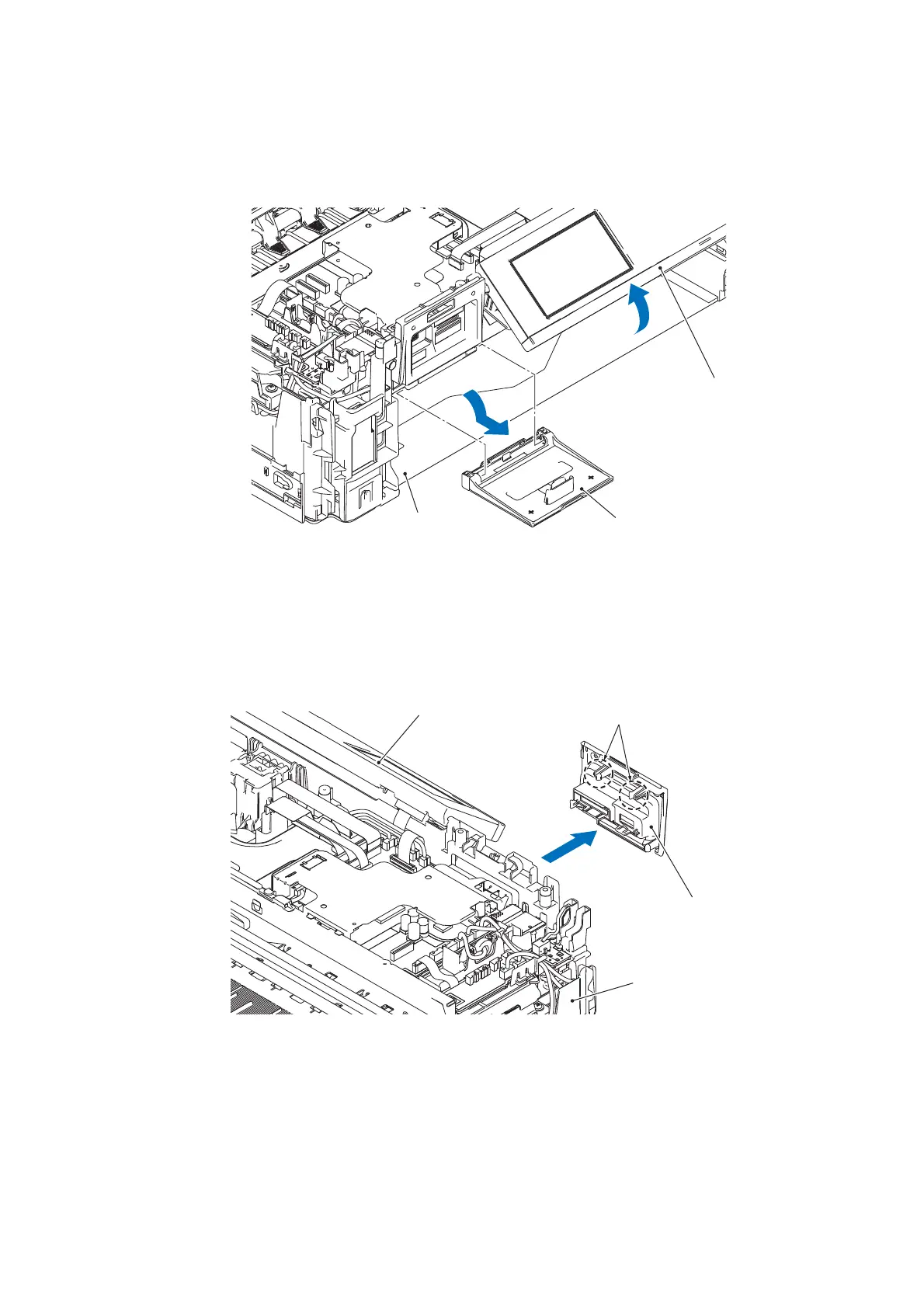

9.12 Media Module Cover
(1) Open the media module cover, release it from the either one of the bosses, and remove the
cover to the front.
9.13 Inner Media Module Cover
(1) Release the two hooks on the inner media module cover and remove the cover to the front.
(Front)
Media module cover
Lower cover
Control panel ASSY
(3_044_E)
(Front)
Lower cover
Inner media
module cover
Hooks
Control panel ASSY
(3_045_E)
