2.4 Retrieving the Equipment Log Information
Function
This procedure retrieves the log information from the machine to the connected PC as
electronic data.
Operating Procedure
(1) Switch your PC on.
(2) Create an arbitrary folder in the C: directory and save the readback tool (rb2k03.exe) and
PJL command file (brmainten_77.pjl) in that folder.
Note: The rb2k03.exe is available only in windows XP.
(3) Switch the machine to the maintenance mode. (Refer to Section 1.1 in this chapter.)
(4) Connect the machine to the PC using a USB cable.
(5) On the PC, start Command Prompt and change to the directory where the readback tool is
located.

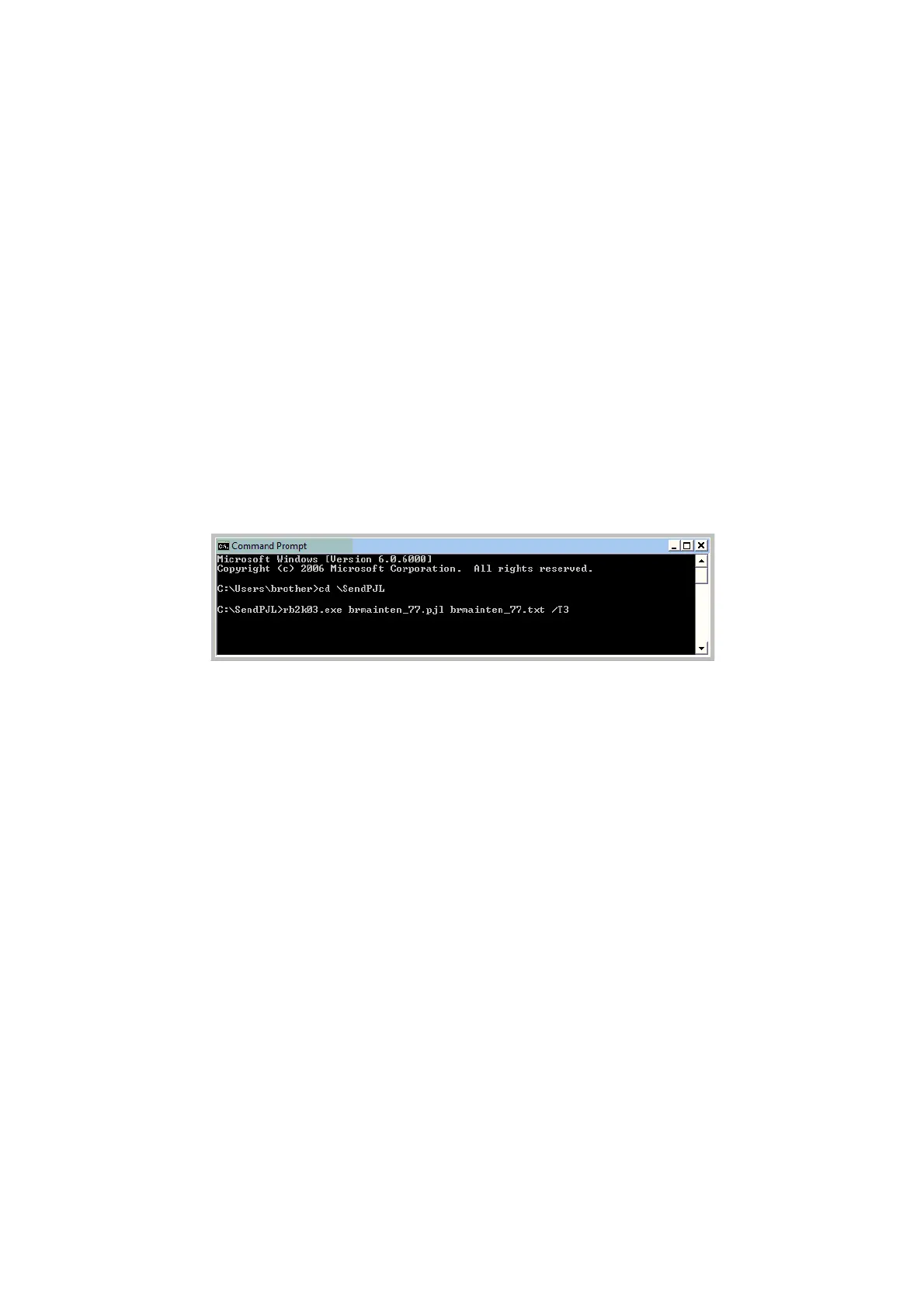

(In the example below, a "SendPJL" folder is created in the C: directory and the readback
tool is saved in that folder.)
(6) In Command Prompt, type
rb2k03.exe brmainten_77.pjl brmainten_77.txt /T3
and
press the Enter key.
Note: Be sure to enter a space to the points marked with an asterisk (*) shown below.
rb2k03.exe*brmainten_77.pjl*brmainten_77.txt*/T3
Otherwise, an error occurs.
brmainten_77.txt
is created in the arbitrary folder.
(7) In Excel, open the created header/footer and delete texts added by the PJL stipulation.
