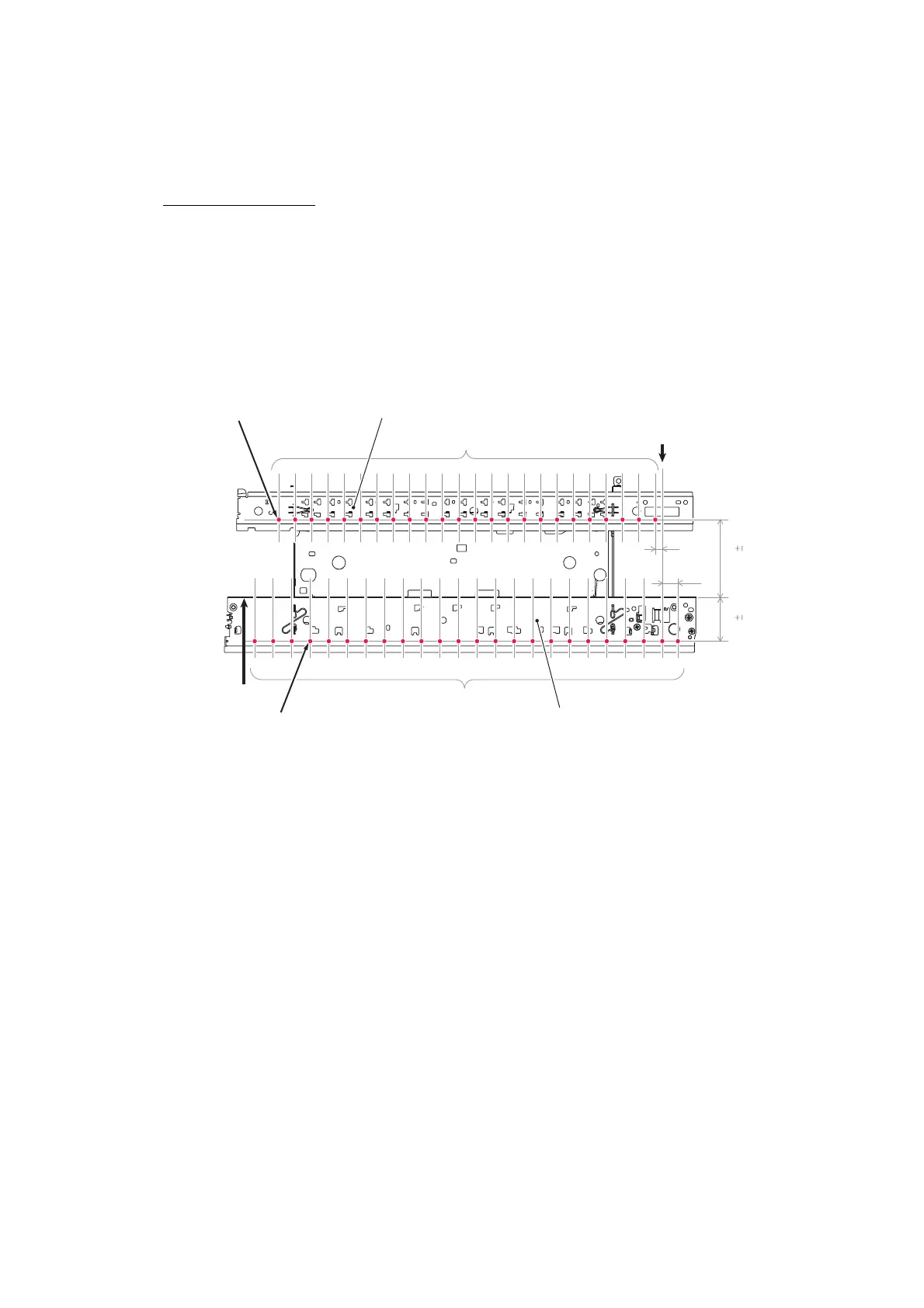

 CR guide rail and CR frame (top face)
Apply a 2 mm diameter ball of grease (FLOIL BG1319) to each of the 48 lubrication points
below.
Lubrication procedure
(1) Move the head/carriage unit to the left end of its travel.
(2) Before applying grease, wipe dust or dirt off the lubrication area with an alcohol soaked
cloth.
(3) Move the head/carriage unit from the left to the right ends of its travel to spread the applied
grease on the CR guide rail and CR frame.
Home position of
head/carriage unit
16.2 mm interval x 24
17.8 mm interval x 24
4
14
42.65 0.5 76.05 0.5
Reference Y
(mm)
CR frame
CR guide rail
Lubrication points
Lubrication points
