3-40
Confidential

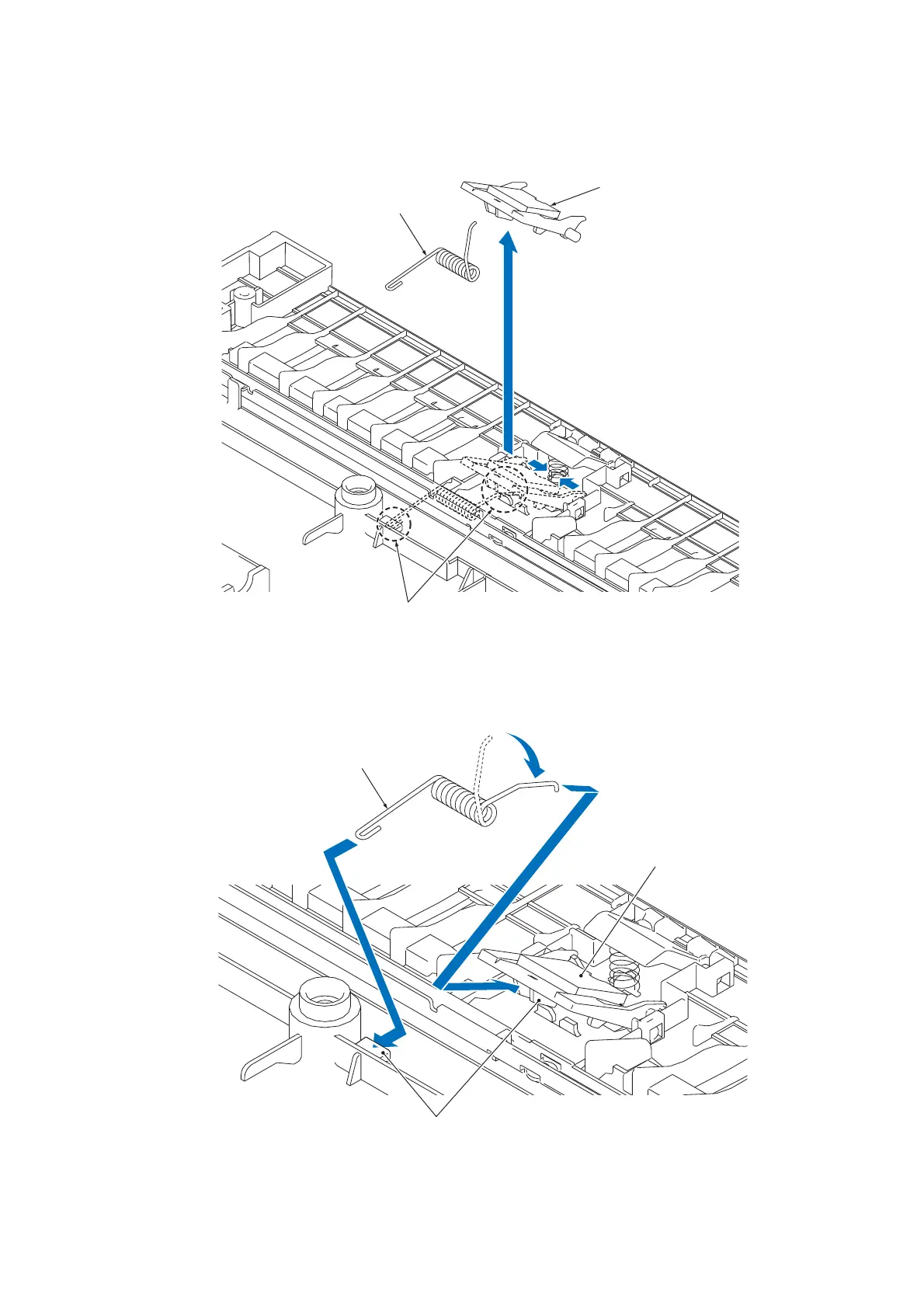

(3) Release the two hooks and remove the ADF separation pad holder ASSY and the ADF
separation spring.
Assembling Note: Mount the ADF separation spring and the ADF separation pad holder ASSY
to the ADF unit, then hook the other end of the spring on the ADF unit.
ADF separation spring
ADF separation pad holder ASSY
Hooks
(3_015_E)
1
2
ADF separation spring
ADF separation pad
holder ASSY
Hooks
(3_016_E)
