3-43
Confidential

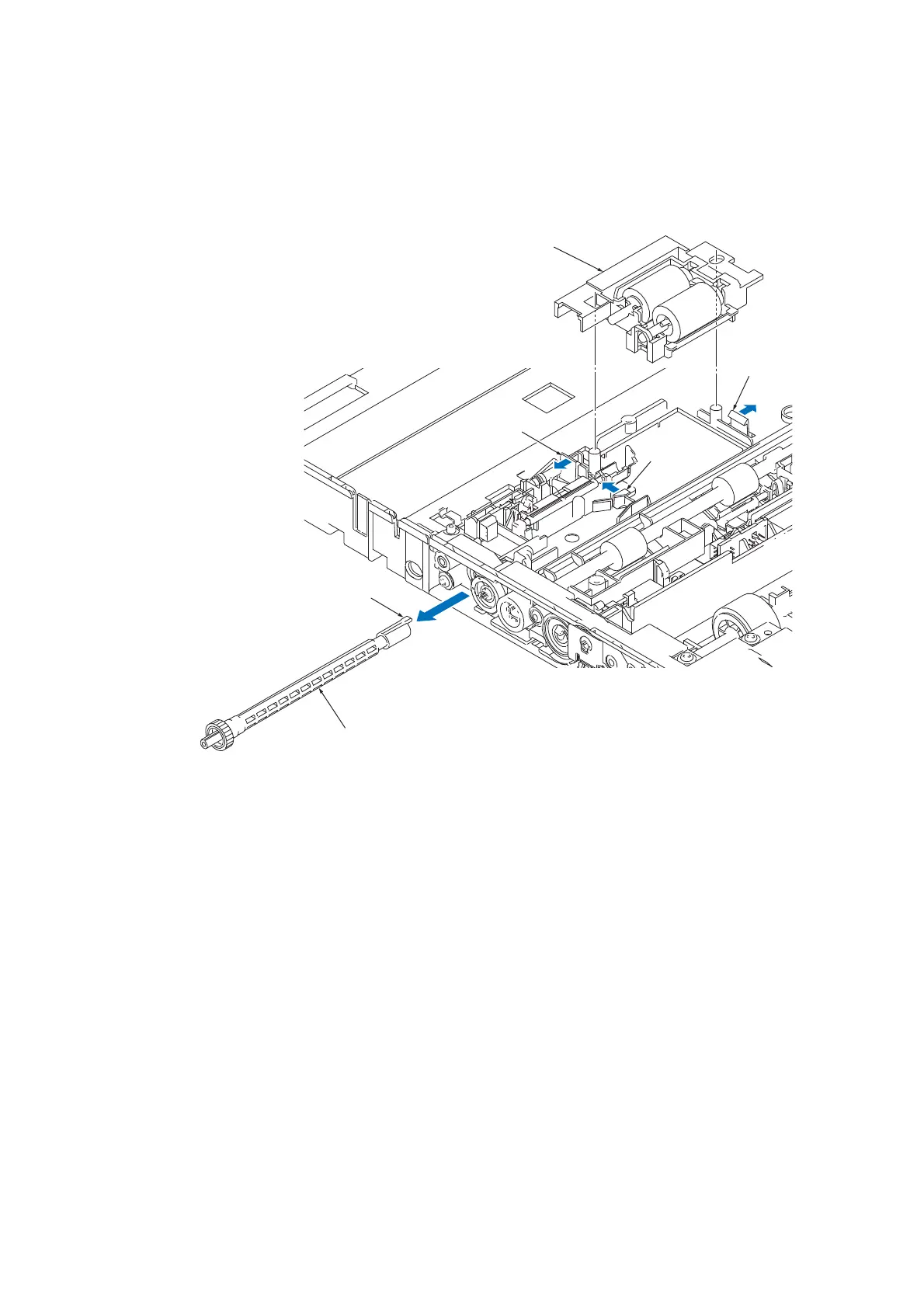

(2) Rotate the document feed roller shaft until the boss of the document separation roller gear
faces upward.
(3) Open the hook and pull out the document separation roller gear to the rear.
(4) Release the two hooks and remove the document separation roller ASSY.
Boss
Document separation roller ASSY
Document separation roller gear
Hook
Hook
Hook
(3_019_E)
