3-59
Confidential

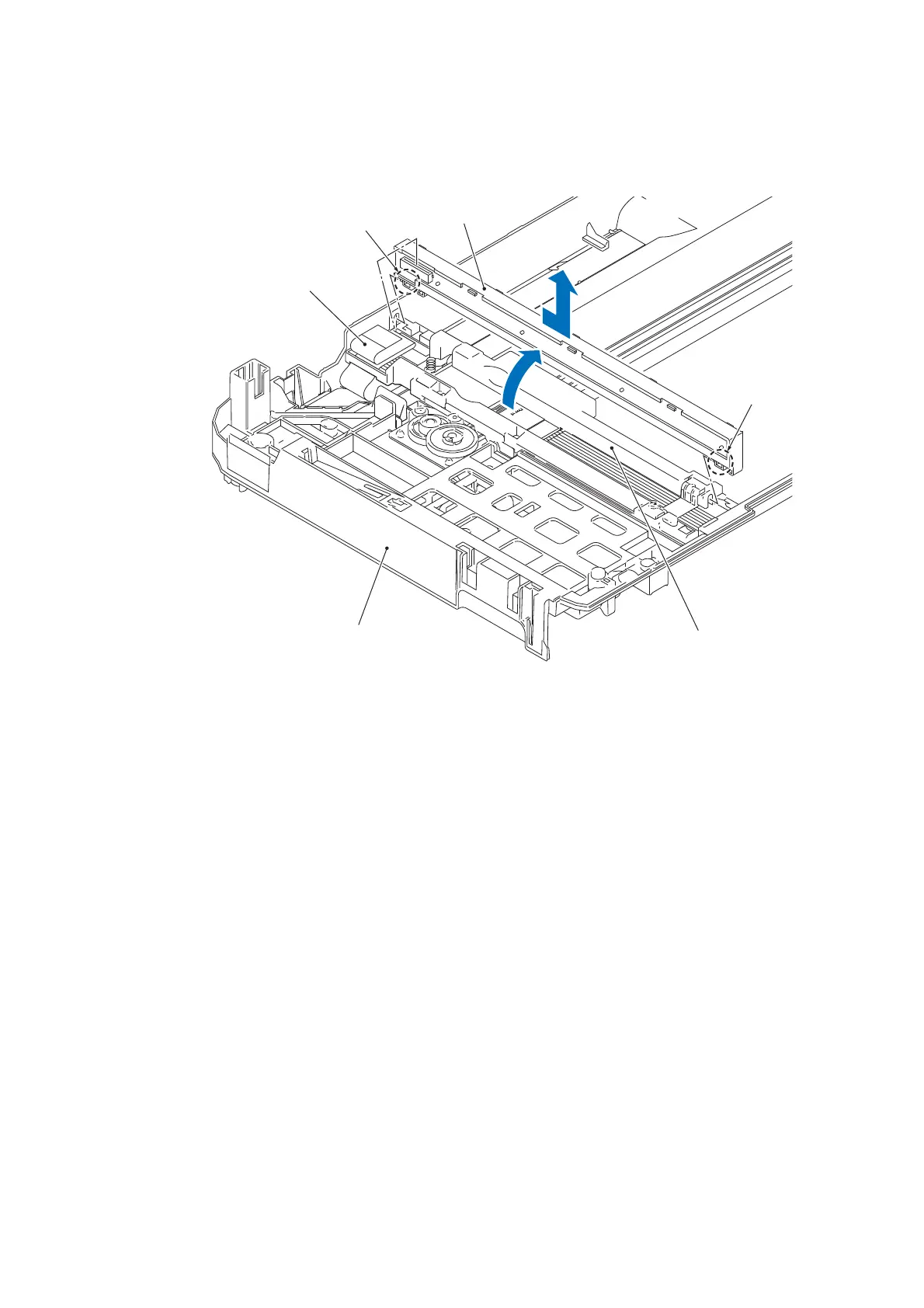

(2) Set the first side CIS unit upright on the CIS carriage, slide it in the direction of the arrow
to remove it, then disconnect the first side CIS flat cable from the CIS unit.
Note: Do not touch the lens of the first side CIS unit by hand.
Document scanner bottom cover
First side CIS unit
First side CIS flat cable
CIS carriage
Boss
Boss
(3_032_E)
